Cast Iron Peripheral Electric Motor Water Pump Qb80 1hp Single Phase IP44/P54

Place of Origin China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number QB-60
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons , overall size:330x180x220mm/pc, N.W.: 9.5kgs
Delivery Time 25 working days after received your payment
Supply Ability 30000pcs per month
Product Details
Product Name Electric Motor Water Pump Power 1 / 0.37
Flow Max 35L/Min Head Max 35M
Suction Max 9M
High Light

electronic water pump

,

commercial electric water pump

,

cast iron electric water pumps

Leave a Message
Product Description

Cast Iron Peripheral Electric Motor Water Pump Qb80 1hp Single Phase IP44/P54



Electric Motor Water Pump Description:



You can use it to transfer clean water or other liquids similar to water in physical and chemical properties.
It is suitable for a small living water supply, automatic water sprinkler system, small air conditioner system, supporting equipment, etc.



Technical data:



Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
QB60 0.5 / 0.37 2.5 2850 35 35 9 1"x1" 280x145x180 5.3



Operating conditions

Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift to 9m
Continuous duty



Electric Motor Water Pump Construct:

Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum Alloy
Shaft: Carbon Steel/Stainless Steel
Insulation: Class b/Class F

Protection: IP44/P54
Cooling: External Ventilation
Pump Body: Cast Iron(with Brass Insert if required)
Impeller: Brass/Stainless Steel
Mechanical Seal: SIC/Ceramic/Graphite

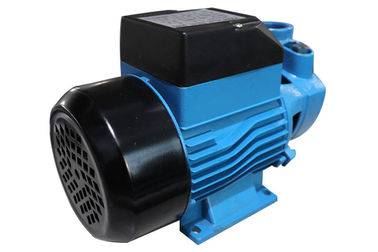

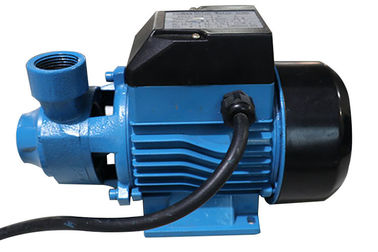

Picture:



Cast Iron Peripheral Electric Motor Water Pump Qb80 1hp Single Phase IP44/P54 0



Electric Motor Water Pump Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
