QB-90 1.5HP Electric Motor Water Pump Color Class B Without Rust

QB-90 1.5HP Electric Motor Water Pump  Color Class B  Without Rust
QB-90 1.5HP Electric Motor Water Pump  Color Class B  Without Rust QB-90 1.5HP Electric Motor Water Pump  Color Class B  Without Rust QB-90 1.5HP Electric Motor Water Pump  Color Class B  Without Rust

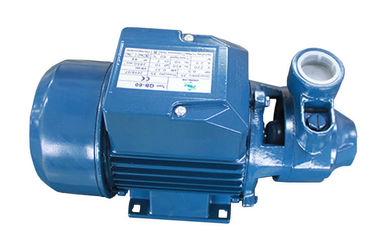

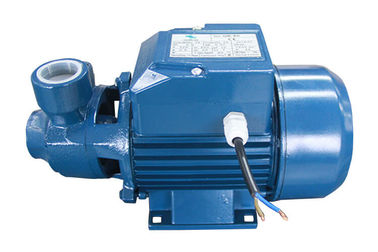

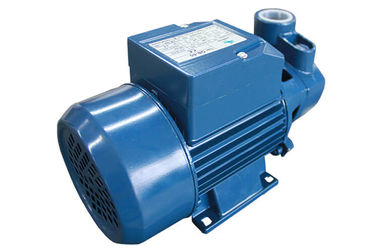

Large Image :  QB-90 1.5HP Electric Motor Water Pump Color Class B Without Rust

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: QB-90
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negociated
Packaging Details: Packed in cartons , overall size:330x180x220mm/pc, N.W.: 9.5kgs
Delivery Time: 25 working days after received your payment
Supply Ability: 30000pcs per month
Detailed Product Description
Product Name: Electric Motor Water Pump Power: 1.5 / 1.1
Flow Max: 90 L/min Head Max: 60 M
Suction Max: 9 M
High Light:

electronic water pump

,

commercial electric water pump

QB-90 1.5HP Clean Water Pump Color Pump Class B Without Rust





Peripheral pump



Electric Motor Water Pump DESCRIPTION:



1100W clean water pump with Automatic Controller has a robust steel pump and motor body to last years of service.



This compact unit is suitable for indoor/weather-protected use for general household supply, water transfer, and pressure boosting (not suited for dirty water such as ponds, lakes, rivers, etc.).

Able to pump 35 liters per minute, this pump is designed to pump clean tank water, connected to a system where the water flow is controlled with a tap.

Some 1000 watt power-draining monsters not only pump up plenty of water, but they also pump up your electricity bill!!!!

This pump is much cheaper to run at just an 1100 watts power drain and will still pump plenty of tank water for your garden irrigation needs.



OPERATING LIMITS:                                                    CONSTRUCTION FEATURES:


* Total suction lift up to 9m                                               * Single Phase

* Maximum ambient temperature +40ºC.                         * Pump Body: Cast Iron

* Liquid temperature up to +60ºC.                                    * Impeller: Brass

* Continuous duty                                                             * Motor Housing: Aluminous alloy

                                                                                         * Insulation Class: B(Class F if required)

                                                                                         * Protection Class: IP44/IP54

 Construction and safety standards in compliance            * Duty: Continuously rated with IEC 220V/50HZ.60HZ 110V/50HZ.60HZ                * Mechanical Seal: Carbon/ ceramic /stainless steel

 220v.110v/50hz.60hz is available on request              * Frant Cover: Cast iron/Cast iron brass insert /

                                                                                          Stainless Steel



QB-90 1.5HP Electric Motor Water Pump  Color Class B  Without Rust 1







APPLICATIONS:



1). An electric motor water pump is highly reliable, light, economical, and simple to use.



2). Finding many uses in domestic applications.



3). In particular, the automatic water distribution from surge tanks.



4). Watering gardens and boosting insufficient mains water pressure.



5). You should install the pump in a dry and covered area, protected against the weather.





ADVANTAGES:



1). High performance



2). High volume



3). High-temperature resistance



4). Long service life



5). Easy to maintenance





WORKING CONDITIONS:



1). Suction lift up to 9 m.



2). Liquid temperature up to +40oC.



3). Ambient temperature up to +40oC.



4). Max. Working pressure: 6 bar.



PRODUCE A LINE PICTURE:



QB-90 1.5HP Electric Motor Water Pump  Color Class B  Without Rust 2



Electric Motor Water Pump GUARANTEE:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:


1). We are happy that the customer has given us some suggestions for price and products.
2). If you have any questions, please let us know first by E-mail or Telephone. Then, we can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers worldwide with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
      A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
      A: We have made water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
      A: Yes, we can. Any OEM is welcome!

4). Q: What are your payment terms?
     A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
     A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

      A: One Year
