High Pressure QB60 Electric Engine Water Pump Working Votage 220V-240V 50HZ 370W

Place of Origin China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number QB-60
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons , overall size:330x180x220mm/pc, N.W.: 9.5kgs
Delivery Time 25 working days after received your payment
Supply Ability 30000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Electric Motor Water Pump Flow Max 35L/Min
Head Max 35M Suction Max 9M
Power 0.5 / 0.37
High Light

electronic water pump

,

commercial electric water pump

Leave a Message
Product Description

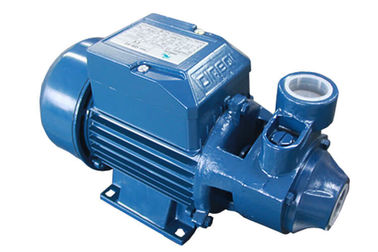

High-Pressure QB60 Electric Engine Water Pump Working Voltage 220V-240V 50HZ 370W





Electric Motor Water Pump Description:



These pumps with peripheral impellers can offer high pressure with comparatively low powers and have particularly steady operating curves.


For the correct functioning of the pump, use to pump clean water, or non-aggressive liquids only, without sand or other solid impurities.


They are qualified in domestic fitting to increase the system pressure in aqueducts and automatic water distribution by autoclave tanks and hydrosphere units.

QB60 waterpump



Construction
Pump
Pump Body:
Impeller:
Mechanical Seal:
Frant Cover:
Motor
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
Construction and safety standards in compliance with IEC
220V/50HZ.60HZ 110V/50HZ.60HZ 220v.110v/50hz.60hz is available on request.





Electric Motor Water Pump Technical data:



Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
QB60 0.5 / 0.37 2.5 2850 35 35 9 1"x1" 280x145x180 5.3





High Pressure QB60 Electric Engine Water Pump Working Votage 220V-240V 50HZ 370W 1

Applications:

  High Pressure QB60 Electric Engine Water Pump Working Votage 220V-240V 50HZ 370W 2

Widely used in living water supply, well water pumping, pressurization of tap water,hot-water pipeline pressurization, water tower water supply, gardens and vegetable greenhouse watering, aquaculture water supply and drainage, and so on.







Electric Motor Water Pump Advantages:



Longer service life
Easy maintenance
Hi-tech technology used.







Electric Motor Water Pump Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
