Y2SH100L-4 Three Phase Induction Motor 2.2kw 3hp

Y2SH100L-4  Three Phase Induction Motor 2.2kw 3hp
Y2SH100L-4  Three Phase Induction Motor 2.2kw 3hp Y2SH100L-4  Three Phase Induction Motor 2.2kw 3hp

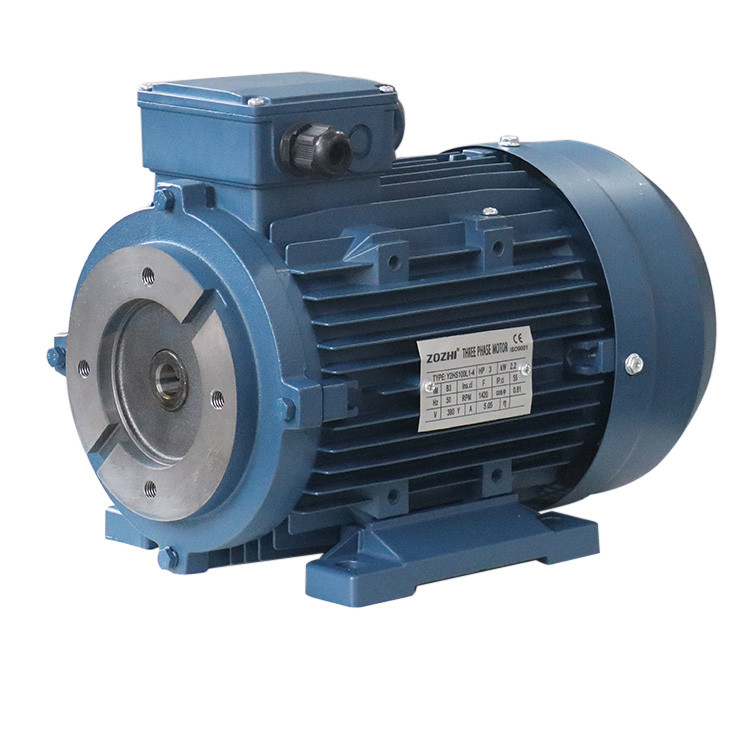

Large Image :  Y2SH100L-4 Three Phase Induction Motor 2.2kw 3hp

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: Y2SH100L-4
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Output: 2.2kw/3hp Application: Hydraulic System
Voltage/Frequency: 220V 230/380V 60HZ Motor Bearing:: C&U (SKF For Choice)
Efficiency:: IE1 IE2 IE3 Motor Housing:: Aluminum
Protection Class:: IP54/IP55 Insulation Class:: F Class
High Light:

hollow shaft electric motor

,

hollow shaft hydraulic motor

Aluminum Housing Hydraulic Electric Motor Direct Drive Motor For Hydraulic System



Description

ZOZHI  Hydraulic Electric Motor



Hydraulic Motors are some of the most reliable and powerful actuators available today  and are used in a wide range of domestic and industrial systems and machinery

hydraulic motor

hydraulic motor

hydraulic motor





hydraulic motor





hydraulic motor

hydraulic motor

Data



Model Rated Output Rated Current Rated Speed Eff Power Factor Starting Current Ts/tn Tmax/Tn Axis Bore Axis Key height Bore Depth Front Cover Oil Pump Fixed Position Oil Pump Model
HP KW A r/min % cosΦ times times Φx键宽 C E halt止口Φ Screw Hole Distance Model
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20,VP12,VP12/20
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 10.15x7齿 Φ13.65 35 82.55 106.3 M10 VP20,7齿花键 tooth key
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12.4x9齿 Φ16.35 35 82.55 106.3 M10 VP20,9齿花键 tooth key
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12x4 13.7 28 50.8 82.55M8 HGP-1A
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 15.875x4 17.7 32 82.55 106.3 M10 HGP-3A

Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY,HGP-2A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12x4 13.7 28 50.8 82.55 M8 HGP-1A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20, VP12/15
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 10.15x7齿 Φ13.65 35 82.55 106.3 M10 VP20,7齿花键 tooth key
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.4x9齿 Φ16.35 35 82.55 106.3 M10 VP20,9齿花键 tooth key
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 16x5 18 37 38 70x100 MB CBN CBT
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 19.05x4.76 21.25 36 95.02 90x90 M10 VP30, VP40
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A

Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 36 95.02 90X90 M10 VP30, VP40
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 16X5 18 37 38 70X100 MB CBN CBT
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20, VP12/15
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 18x6 18 37 38.00 70X100 MB CBN CBT
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1

Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 16x5 18 37 38.00 70x100 MB CBN CBT
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1, FA1
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 19.05x4.76 21.25 36 95.02 90x90 M10 VP-30 VP-40
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 22x5 24 50 96 90x90 M10 50T
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 11.4x4 Φ15-4齿 37 38.00 70x100 MB CBN 4齿花键

Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 22x5 24 50 96 90x90 M10 50T-F
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 16x5 18 37 38.00 70x100 MB CBN CBT
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1, FA1
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 25.4x6.35 28.2 50 101.6 Φ146 M12 T6B PV2R2
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 30x8(7) 33 48 160 Φ187 M12 150T

Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 19.05x4.76 21.5 38 82.55 106 M10 PV2R1 FA
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 22.23x6.35 25.08 35 101.6 146 M12 T6C
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 25.4x6.35 28.2 50 101.6 146 M12 T6B PV2R2
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 30x8(7) 33 48 160 Φ187 M12 150T
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 22.23x4.76 24.5 52 101.6 146 M12 S25V(S20V)25VQ
