High Pressure Vertical Multistage Centrifugal Pump For Industrial , 0.75HP / 0.55KW

China High Pressure Vertical Multistage Centrifugal Pump For Industrial , 0.75HP / 0.55KW supplier

Large Image :  High Pressure Vertical Multistage Centrifugal Pump For Industrial , 0.75HP / 0.55KW

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: MV145 2M

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in wooden cases
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Output: 0.75HP / 0.55KW Flow Max: 145 L/Min
Head Max: 25M Input Power: 0.65KW
Stage: 2 Stage Type: Vertical
Item: Multistage Vertical Centrifugal Pump Application: Water Supply


High-Pressure Centrifugal Vertical Multistage Water Pump For Industrial Market


Description

   The mounting dimensions of the electric motors are all in conformity with IEC standard. Adopt aluminum frame, end shields and base. Beautiful appearance, light weight,reasonable structure, simple construction, insulation vacuum impregnation, superior paint finish.The motor give excellent performance such as stable operation, little vibration, low noise, low temperature rise, high overload capacity, easy maintenance.


PERFORMANCE DATA AT n=2850 min-1


Pump ModelDN1DN2DIMENSION (MM)
hh1h2nn1n2ms
MV145 2M1"1.25"37916130.520512212217610


Q=Flow Rate H=Total dynamic Head In Meters Curve tolerance according to ISO 2548

Applications:

  1. MV series is a kind of multifunctional products. I can be used to convey various medium from tap water to industrial liquid at the different temperature and with different flow rate and pressure.
  2. Water supply: Water filter and transport in Waterworks, boosting of the main pipeline, boosting in high-rise buildings.
  3. Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.
  4. The industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali.
  5. Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
  6. Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.



Features

Features about High-pressure Centrifugal vertical multistage Water pump

Stator portion
Marine vertical residential reverse osmosis pump consists of a suck-in section. middle-section, spitting section, guide vane, packing etc., which are linked together with a take-up bolt. with both suck-in and spitting mouths vertically upward.

Rotor portion
Consists of a shaft, impeller, balancing disk, muff etc. Parts.

Bearing portion
The whole rotor is supported by the roller bearings or sliding bearings on both ends of the shaft and the bearings are lubricated with grease or 20# engine oil.

Cooling and seal of residential reverse osmosis pump
The joint-part between suction section, an intermediate section and discharge section with being coated with molybdenum disulfide lubricating grease as a seal. Rotor and fixed parts will be sealed by seal ring, guide-vane jacket, and packing. The packing tensile degree of shaft seal should be proper and seep should be a feasible dip by dip Unload run should be forbidden. The seal ring and guide vane jacket should be replaced if they are too worn to be used any more and even do harm to pump work. There is spare shaft sleeve near shaft seal to protect shaft of the pump.


 Description of Centrifugal Pump


ItemVertical multistage centrifugal pump
SuctionEnd
ModelMV60 Series
MaterialStainless Steel
SizeLight,Small
TypeVertical
DriveCoupling
ImpllerClose Impeller
SealMechanical seal
Speed2900 RPM
TheoryCentrifugal pump
CharacterHigh Pressure, multistage
UsageIrrigation, high lift, and boiler feed
PowerElectric
Standard or Non-StandardStandard
ShaftStainless Steel
Outlet Diameter25-50mm
Capacity1-55m3/h
Max.Head300m
Power0.37-45KW
Warranty36 months
CertificateISO9001:2008,CE,GS,TUV
OEMAccept
Feature

<180 degree C,high pressure

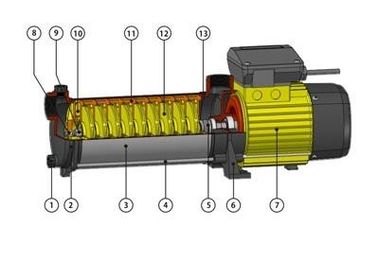

materials:
- Suction/discharge mounting in Casting Iron (Casting brass are availability).
- Pump housing in SUS 304 Stainless steel.
- Diffuser in PPO(Noryl ).
- Impellers in PPO(Noryl )(SUS 304 Stainless steel are availability).
- Motor shaft in SUS 416 stainless steel (Carbon steel and SUS 316 Stainless steel are availability).
- Mechanical seal with Ceramic/graphite, NBR elastomers, other parts are made of SUS 304 stainless steel.
- O-ring made of NBR (EPDM are availability).


optional features:

- Different voltages and frequencies.
- Different materials for the mechanical seal.

guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

FAQ:

1. Q: What’s the MOQ?
    A: Trial sample order is ok.

2. Q: Are you factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.

4.  Q: How can I get the pump?
    A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
    A: 1 year.
