1HP Multistage Centrifugal Pump / 4 Stage Industrial Water Pumps With 90 L/Min Max Flow

China 1HP Multistage Centrifugal Pump / 4 Stage Industrial Water Pumps With 90 L/Min Max Flow supplier
1HP Multistage Centrifugal Pump / 4 Stage Industrial Water Pumps With 90 L/Min Max Flow supplier 1HP Multistage Centrifugal Pump / 4 Stage Industrial Water Pumps With 90 L/Min Max Flow supplier

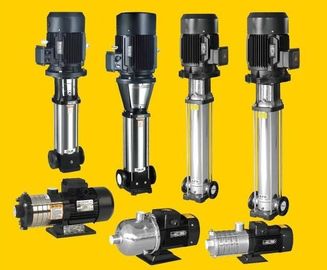

Large Image :  1HP Multistage Centrifugal Pump / 4 Stage Industrial Water Pumps With 90 L/Min Max Flow

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: MV90 4M

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in wooden cases
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Output: 1HP / 0.75KW Flow Max: 90 L/Min
Head Max: 43M Input Power: 1.1KW
Stage: 4 Stage Type: Vertical Type
Item: Multistage Vertical Centrifugal Pump Application: Water Supply


1HP Water Pump Vertical Multistage Centrifugal Pump Made In China



Description Of Centrifugal Pump



Item Vertical multistage centrifugal pump
Suction End
Model MV90 Series
Material Stainless Steel
Size Light,Small
Type Vertical
Drive Coupling
Impeller Close Impeller
Seal Mechanical seal
The speed at  2900 RPM
Theory Centrifugal pump
Character High Pressure, multistage
Usage Irrigation, high lift, and boiler feed
Power Electric
Standard or Non-standard Standard
Shaft Stainless Steel
Outlet Diameter 25-50mm
Capacity 1-55m3/h
Max.Head 300m
Power 0.37-45KW
Warranty 36 months
Certificate ISO9001:2008,CE,GS,TUV
OEM Accept
Feature

<180 degree C,high pressure





OPERATION CONDITIONS:



  1. A thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
  2. Liquid temperature:
  3. Normal temperature type: -15C~+70C,
  4. Hot water type: -15C~+120C
  5. Ambient temperature: up to +40C
  6. Altitude: up to 1000m



MATERIALS

- Suction/discharge mounting in Casting Iron (Casting brass are availability).
- Pump housing in SUS 304 Stainless steel.
- Diffuser in PPO(Noryl ).
- Impellers in PPO(Noryl )(SUS 304 Stainless steel are availability).
- Motor shaft in SUS 416 stainless steel (Carbon steel and SUS 316 Stainless steel are availability).
- Mechanical seal with Ceramic/graphite, NBR elastomers, other parts is made of SUS 304 stainless steel.
- O-ring made of NBR (EPDM are availability).


OPTIONAL FEATURES

- Different voltages and frequencies.
- Different materials for the mechanical seal.


PERFORMANCE DATA AT n=2850 min-1



Pump Model Input Output Q m3/h 0 0.6 1.2 1.8 2.4 3 3.6 4.2 4.8 5.4
KW KW HP L/Min 0 10 20 30 40 50 60 70 80 90
MV90 2M 0.6 0.45 0.6 H (m) 22 21 20 19 17 15 13 10 6
MV90 3M 0.9 0.65 0.9 32 31 30 28 26 23 20 16 11 4
MV90 4M 1.1 0.75 1 43 42 41 39 36 33 29 24 17 9
MV90 5M 1.35 1 1.3 53 52 51 49 47 41 36 30 23 13
MV90 6M 1.65 1.3 1.65 64 62 61 58 55 50 45 37 28 17
MV90 7M 1.9 1.5 2 75 73 70 67 63 58 51 43 33 20
MV90 8M 2.2 1.65 2.2 86 83 80 75 70 65 57 48 37 23

Q=Flow Rate H=Total dynamic Head In Meters    Curve tolerance according to ISO 2548



GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.


FAQ

1. Q: What’s the MOQ?
    A: Trial sample order is ok.

2. Q: Are you factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.

4.  Q: How can I get the pump?
    A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
    A: 1 year.
