120 L/Min Flow Multistage Centrifugal Pump For Air - Conditioning System , Class F Insulation

China 120 L/Min Flow Multistage Centrifugal Pump For Air - Conditioning System , Class F Insulation supplier
120 L/Min Flow Multistage Centrifugal Pump For Air - Conditioning System , Class F Insulation supplier 120 L/Min Flow Multistage Centrifugal Pump For Air - Conditioning System , Class F Insulation supplier

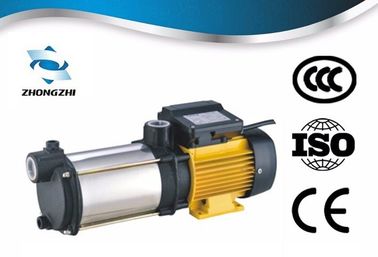

Large Image :  120 L/Min Flow Multistage Centrifugal Pump For Air - Conditioning System , Class F Insulation

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: MH120

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:337*150*180mm
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Product Name: Multistage Horizontal Pump Usage: Watering
Power: Electric Power Flow Max: 120 L/Min
Head Max: 24M Input Power: 0.7KW
Stage: Three Stage Dimension: 360*150*196mm



  Horizontal Multistage Pump (MH145) high pressure centrifugal pump 3 stage



 WATER PUMP APPLICATION

  • Air-conditioning system
  • Cooling system
  • Industrial cleaning
  • Water treatment, water purification, pressure boosting
  • Irrigation and Aquiculture

120L/min

MH120 2-6 Stage

Multistage Horizontal Centrifugal Pump



PUMP



- Maximum capacity: 120l/min(7.2m3/h).

- Head up to 72m.

- The temperature of pumped liquid: 0-40℃.

- Maximum operating pressure: 8.0 bar.







MOTOR



- Asynchronous, two poles.

- Protection class: IPX5.

- Class F insulation.

- Continuous operation.

- Single phase version 220-240V 50Hz with automatic reset overload protection.

- Three phase version: 220-240V/380-415V 50Hz, the overload protection must be provided and installed by the user in the control panel.

- Maximum ambient temperature 40℃.



OPTIONAL FEATURES



- Different voltages and frequencies.
- Different materials for the mechanical seal.





PERFORMANCE DATA AT n=2850 min-1



Pump Model Input Output Q m3/h 0 1.2 2.4 3.6 4.8 6 7.2
KW KW HP L/Min 0 20 40 60 80 100 120
MH120 2M 0.7 0.55 0.75 H (m) 24 22 20 17 12 6 0
MH120 3M 1 0.75 1 36 33 30 25 18 11 2
MH120 4M 1.3 1 1.3 48 46 41 35 27 17 6
MH120 5M 1.65 1.3 1.65 60 58 51 46 37 24 10
MH120 6M 2 1.5 2 72 69 61 57 46 32 14

Q=Flow Rate H=Total dynamic Head In Meters    Curve tolerance according to ISO 2548



DIMENSION



Pump Model DN1 DN2 DIMENSION (MM)
a f h h1 h2 n n1 w s
MH120 2M 1.25" 1" 145.5 360 196 126 36.5 150 120 165.5 10
MH120 3M 1.25" 1" 170 384 196 126 36.5 150 120 190 10
MH120 4M 1.25" 1" 194.5 409 196 126 36.5 150 120 214.5 10
MH120 5M 1.25" 1" 222 456 237.5 142 41.5 165 130 252.5 10
MH120 6M 1.25" 1" 246.5 480 237.5 152 46.5 165 130 277 10

120 L/Min Flow Multistage Centrifugal Pump For Air - Conditioning System , Class F Insulation





EXPLOSION



Item Description Material
1 Prime and drain plugs Casting Brass
2 Suction mounting Casting iron
3 Pump housing 304 stainless steel
4 Tie bolt Nickel-plated steel
5 Mechanical seal Graphite-Ceramic-NBR
6 Discharge mounting Casting iron
7 Motor Class F IPX5
8 Shaft sleeve Plastic bearing
9 Nut 304 stainless steel
10 Prime cover PPO GNF-20
11 Diffuser PPO GNF-20
12 Impeller PPO GNF-20
13 Casing O-ring EPDM

120 L/Min Flow Multistage Centrifugal Pump For Air - Conditioning System , Class F Insulation



ADVANTAGE

100% high-quality copper,100% output
Cold -rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty


GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.


OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ

1. Q: What’s the MOQ?
    A: Trial sample order is ok.

2. Q: Are you factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.

4.  Q: How can I get the pump?
    A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
    A: 1 year.
