0.5HP Double Stage Multistage Centrifugal Pump For Mine / Centrifugal Water Pump

China 0.5HP Double Stage Multistage Centrifugal Pump For Mine / Centrifugal Water Pump supplier
0.5HP Double Stage Multistage Centrifugal Pump For Mine / Centrifugal Water Pump supplier

Large Image :  0.5HP Double Stage Multistage Centrifugal Pump For Mine / Centrifugal Water Pump

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: MH60 2M

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:337*150*180mm
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Product Name: Multistage Horizontal Centrifugal Pump Application: For Mine
Output: 0.5HP / 0.37KW Flow Max: 60 L/Min
Head Max: 20M Input Power: 0.5KW
Stage: Two Stage Dimension: 337*150*180mm
High Light:

high pressure centrifugal pump

,

stainless steel centrifugal pump


Multistage Horizontal Centrifugal Pump 2 stage for mine area 0.5HP


60L/min

MH60 2-6 Stage

Multistage Horizontal Centrifugal Pump

· PUMP

  • - Maximum capacity: 60l/min(3.6m3/h).
    - Head up to 60m.
    - A temperature of pumped liquid: 0-40oC.
    - Maximum operating pressure: 7.0 bar.
  •

· MATERIALS

  • - Suction/discharge mounting in Casting Iron (Casting brass are availability).
    - Pump housing in SUS 304 Stainless steel.
    - Diffuser in PPO(Noryl ).
    - Impellers in PPO(Noryl )(SUS 304 Stainless steel are availability).
    - Motor shaft in SUS 416 stainless steel (Carbon steel and SUS 316 Stainless steel are availability).
    - Mechanical seal with Ceramic/graphite, NBR elastomers, other parts are made of SUS 304 stainless steel.
    - O-ring made of NBR (EPDM are availability).
  •

· MOTOR

  • - Asynchronous, two poles.
    - Protection class: IPX5.
    - Class F insulation.
    - Continuous operation.
    - Single phase version 220-240V 50Hz with automatic reset overload protection.
    - Three phase version: 220-240V/380-415V 50Hz, the overload protection must be provided and installed by the user in the control panel.
    - Maximum ambient temperature 40oC
  •

· OPTIONAL FEATURES

  • - Different voltages and frequencies.
    - Different materials for the mechanical seal.

0.5HP Double Stage Multistage Centrifugal Pump For Mine / Centrifugal Water Pump 0

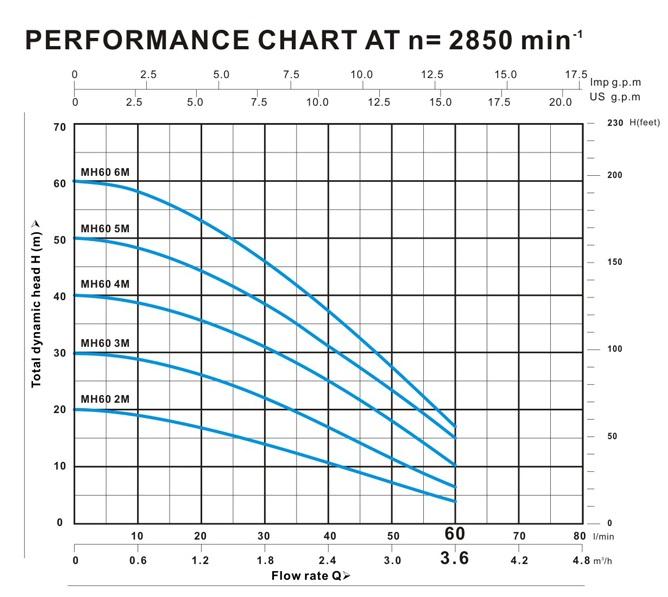

Pump Model Input Output Q m3/h 0 0.6 1.2 1.8 2.4 3 3.6
KW KW HP L/Min 0 10 20 30 40 50 60
MH60 2M 0.5 0.37 0.5 H (m) 20 19 17 14 11 7 4
MH60 3M 0.65 0.5 0.65 30 29 26 22 17 12 7
MH60 4M 0.9 0.7 0.95 40 39 35 31 25 18 10
MH60 5M 1.1 0.85 1.15 50 48 44 38 31 24 15
MH60 6M 1.3 1 1.3 60 58 53 46 37 28 17

Q=Flow Rate H=Total dynamic Head In Meters          Curve tolerance according to ISO 2548



DIMENSION

0.5HP Double Stage Multistage Centrifugal Pump For Mine / Centrifugal Water Pump 1

Pump Model DN1 DN2 DIMENSION (MM)
a f h h1 h2 n n1 w s
MH60 2M 1" 1" 146 337 180 121 31.5 150 120 164 10
MH60 3M 1" 1" 170.5 362 180 121 31.5 150 120 188.5 10
MH60 4M 1" 1" 194.5 409 196 126 36.5 150 120 214.5 10
MH60 5M 1" 1" 219 433 196 126 36.5 150 120 239 10
MH60 6M 1" 1" 243.5 458 196 126 36.5 150 120 263.5 10

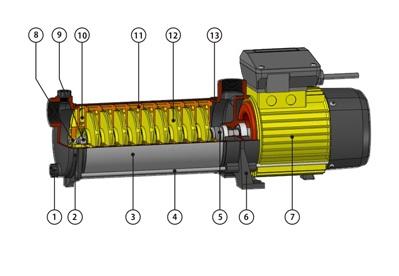

EXPLOSION

0.5HP Double Stage Multistage Centrifugal Pump For Mine / Centrifugal Water Pump 2

Item Description Material
1 Prime and drain plugs POM GNF-20
2 Suction mounting Casting iron
3 Pump housing 304 stainless steel
4 Tie bolt Nickel-plated steel
5 Mechanical seal Graphite-Ceramic-NBR
6 Discharge mounting Casting iron
7 Motor Class F IPX5
8 Shaft sleeve Plastic bearing
9 Nut 304 stainless steel
10 Prime cover PPO GNF-20
11 Diffuser PPO GNF-20
12 Impeller PPO GNF-20
13 Casing O-ring EPDM



ADVANTAGE

100% high-quality copper,100% output
Cold -rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty


GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ

1. Q: What’s the MOQ?
    A: Trial sample order is ok.

2. Q: Are you factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.

4.  Q: How can I get the pump?
    A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
    A: 1 year.
