Cast Iron Multistage Centrifugal Pump / High Pressure Centrifugal Pump With 50M Max Head

China Cast Iron Multistage Centrifugal Pump / High Pressure Centrifugal Pump With 50M Max Head supplier
Cast Iron Multistage Centrifugal Pump / High Pressure Centrifugal Pump With 50M Max Head supplier Cast Iron Multistage Centrifugal Pump / High Pressure Centrifugal Pump With 50M Max Head supplier Cast Iron Multistage Centrifugal Pump / High Pressure Centrifugal Pump With 50M Max Head supplier

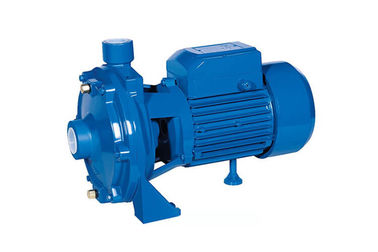

Large Image :  Cast Iron Multistage Centrifugal Pump / High Pressure Centrifugal Pump With 50M Max Head

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: SCM2-52-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:415x255x320mm/pc, N.W.: 23.5kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Theory: Water Pump Application: Watering
Output: 1.5HP / 1.1KW Flow Max: 105L/Min
Head Max: 50M Suction Max: 9M
Phase: 3phase Voltage: 220-240v



Two stage centrifugal water pump SCM2 0.5 hp 1hp 1.5hp 3hp 4hp 5.5hp 7.5hp15hp 20hp


APPLICATION:



The SCM2 series double-stage centrifugal pump are with two back-to-back impellers centrifugal pumps, are developed for higher head valve than single impeller pumps and have extremely high outputs. They are suitable for pumping clean water and chemically non-aggressive liquid, reliable, economical and simple to use. Pumps should be installed in a covered area, protected against the weather.



CONSTRUCTION:



Pump Body: cast iron

Motor Housing: aluminum/cast iron

Shaft: 45# steel /stainless steel

Impeller: Brass

Motor: closed, externally ventilated

Insulation Class: B/F

Protection Class: IP44 /IP54

Duty: continuously rated

Mechanical Seal: ceramic steatite/metalized carbon



TECHNICAL DATAS:


Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
SCM2-45 1 / 0.75 5.2 2850 90 40 9 1"x1" 380x210x240 18.8
SCM2-52 1.5 / 1.1 7 2850 105 50 9 1.25"x1" 415x255x320 23.5
SCM2-60 2.0 / 1.5 9.6 2850 130 55 9 1.25"x1" 415x255x320 24.5
SCM2-68 3.0 / 2.2 13.5 2850 150 65 9 1.5"x1.25" 480x290x350 31

Other voltages and frequencies available on request



Cast Iron Multistage Centrifugal Pump / High Pressure Centrifugal Pump With 50M Max Head







Cast Iron Multistage Centrifugal Pump / High Pressure Centrifugal Pump With 50M Max Head




STRUCTURAL CHARACTERISTICS:



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1.Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



ADVANTAGE:

100% high-quality copper,100% output
Cold -rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty


GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:

1. Q: What’s the MOQ?
    A: Trial sample order is ok.

2. Q: Are you factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.

4.  Q: How can I get the pump?
    A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
    A: 1 year.
