PX 0.75kw 1.1kw 2.2kw Electric AC Centrifugal Pumps 100% Copper Wire With For Watering

Place of Origin China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number PX-204
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons or pallets
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name Centrifugal Water Pump Application Boosting
Power 1.5HP /1.1KW Flow Max 230L/Min
Head Max 16M Structure Single-stage Pump
Pipe Size 2"x2" Feature Greenhouse Irrigation
Highlight

water centrifugal pump

,

electric centrifugal pump

Leave a Message
Product Description

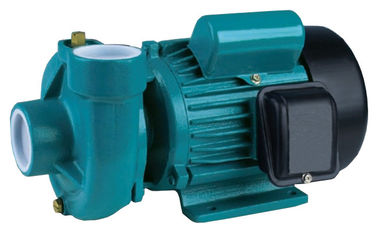

PX 0.75kw 1.1kw 2.2kw Electric AC Centrifugal Pumps 100% Copper Wire With For Watering



Centrifugal Water Pump APPLICATION AREAS

A) A domestic application such as supply water from well, pool .etc
B) High-rise building water supply
C) Farmland garden irrigation
D) Clean water without abrasive particles
E) Installed in enclosed places, or at least protected against inclement weather

F) Single impeller centrifugal pumps, extremely silent suitable for household, civil and industrial applications



Centrifugal Water Pump FEATURE


1) Enamel technique: clean, healthy, environmental, prevent secondary pollution
2) 100% high quality copper,100% output
3) Cold-rolled silicon steel sheet by a high-speed punching machine
4) Good quality bearing, the surface more smooth, the dimension more precise
5) Thermal protector







Centrifugal Water Pump TECHNICAL DATA

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
PX-201 0.75 / 0.55 3.8 2850 105 16 9 1"x1" 350x220x230 15
PX-203 1 / 0.75 5.2 2850 180 16 9 1.5"x1.5" 360x220x230 16.5
PX-204 1.5 / 1.1 7 2850 230 16 9 2"x2" 360x220x230 18
PX-205 2.0 / 1.5 9.6 2850 310 18 9 2"x2" 430x280x265 22
PX-207 3.0 / 2.2 17.1 2850 800 20 9 3"x3" 520x330x310 33.8


 PX 0.75kw 1.1kw 2.2kw  Electric AC Centrifugal Pumps 100% Copper Wire With  For Watering 0




STRUCTURAL CHARACTERISTICS


Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC







OUR SERVICE

1). We are delighted that the customer gives us some suggestions for price and products.

2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.

3). Offer our customers the lowest prices. Streamline the buying and paying processes.

4). Deliver goods to our customers all over the world with speed and precision.

5). Ensure the excellent quality of our products.

6).12 months FREE warranty.

7). Accept OEM


Centrifugal Water Pump Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





FAQ

1). Q: How about the MOQ?
     A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
      A: we make water pumps, motors, alternators, and diesel generators since 2006.

3).  Q: Can you accept to use our logo?
       A: Yes, we can. Any OEMs are welcome!

4).  Q: What are your payment terms?
      A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5).  Q: How about the delivery time?
       A: Usually, 10-30days. But it depends on your order quantity.

6).  Q: How about the warranty?
     A: 1 year from shipped on board date.
