Single Phase 1.5HP Water Pump For Agricultural Irrigation Lawn Irrigation Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xItem | Agricultural Electric Pump | Application | Boosting |
---|---|---|---|
Power | 1.5HP /1.1KW | Flow Max | 500L/Min |
Head Max | 15M | Structure | Single-stage Pump |
Pipe Size | 2"x2" | Feature | Greenhouse Irrigation |
Product Name | Centrifugal Water Pump | ||
Highlight | micro centrifugal pump,electric centrifugal pump |

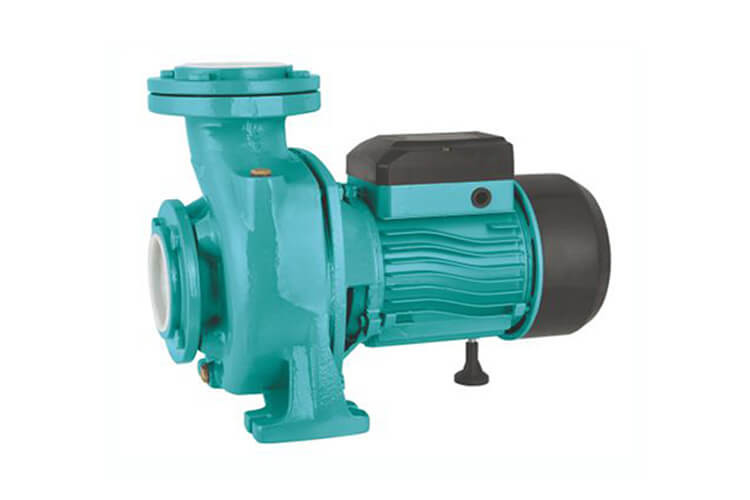

Single Phase 1.5HP Water Pump For Agricultural Irrigation Lawn Irrigation Pump
Descriptions:
NFM series centrifugal pump meets the need of many different operating requirements such as supplying
water from well, pool, increasing the water pressure in the pipe, garden sprinkling of clean washing, etc. These pumps should be installed in a covered area, protected against the weather.
Technical Data:

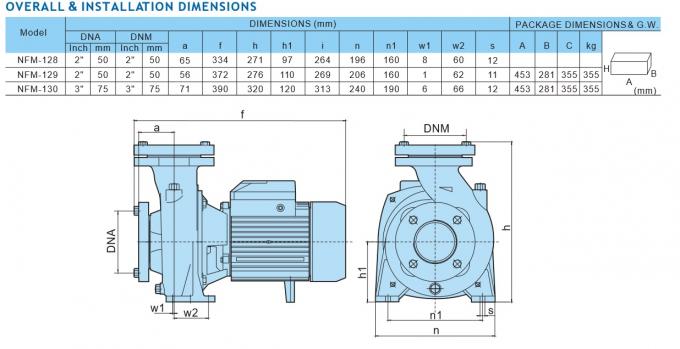

Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH |
HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | |||
NFM-129B | 1.5 / 1.1 | 7 | 2850 | 500 | 15 | 9 | 2"x2" | 453x281x35 |
Other voltages and frequencies available on request
Applications:
A) Hairdressing industry pressurized water
B) Garden spraying
C) Use in industry and city for drainage and irrigation
D) Water pressure boosting
E) Adding pressured
F) Single impeller centrifugal pumps, extremely silent suitable for household, civil and industrial applications
Centrifugal Water Pump Advantages:
1. Motors made to heavy-duty service factors
2. Can be made with stainless steel shaft
3. Others insulation on request
4. High performance and efficiency
5. Heavy-duty ball bearings
structural characteristics:
Main Specification | Standard | Optional |
Transmission medium | Clean Water | |
Pump body | Cast Iron | |
Impeller | Brass | Noryl PPO |
Motor housing | Aluminum | |
Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | |
Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
Thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
Our services:
1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6).12 months FREE warranty.
7). Accept OEM
Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
