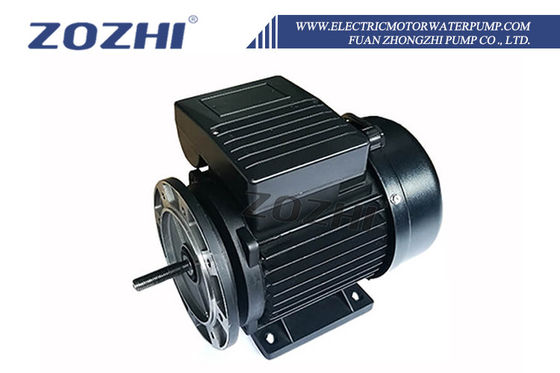

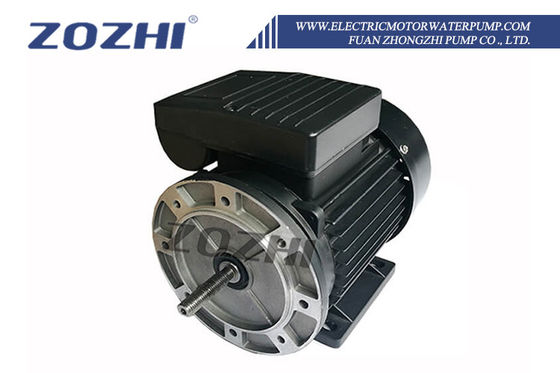

240V 50Hz AC Induction Motor with 56J Frame for Pool Pump and Water Blaster Applications in 1-3HP Range
Product Details
| Outlet Diameter | 1 Inch | Head | 20m |
|---|---|---|---|
| Weight | 5.5 Kg | Standard Or Nonstandard | Standard,Other |
| Power Supply | Electric | Poles | 2/4/6/8 Poles |
| Quality | Superior | Duty Cycle | Continuous |
| Fuel | Electric | Cooling Method | ICO141 |
| Core Wire | Copper | Screw Type | Female/Male |
| Funtion | Massage, For Bathtub | Out Put | 1HP/0.75KW |
| Voltage | 220V / 110V | ||
| Highlight | 240V 50Hz AC Induction Motor,56J Frame Pool Pump Motor,1-3HP Water Blaster Motor |
||
Product Description
240V 50Hz Australian Standard Motor
Water Blaster/Pressure Washer & Pool Pump Motors, 1-3HP 56J Frame, AC Induction, Wholesale & OEM Replacement for Commercial/Domestic Use
Product Overview
This motor is specifically designed for the Australian market, fully compliant with Australian Standards. Compatible with 240V mains electricity and 50Hz power grid frequency, it serves two primary applications: high-pressure washers (Water Blasters) and pool pumps, while supporting general AC induction motor applications across multiple scenarios.
Ideal for commercial heavy-duty use, industrial continuous operation, or domestic/residential applications, this motor delivers stable and efficient power output. Available as original replacement parts or OEM customized products, with wholesale procurement options to meet diverse customer requirements.
Core Product Series
High Pressure Washer Motor (Water Blaster Motor)
- AC induction motor with single-phase/three-phase options
- 4-pole (1450RPM) and 2-pole (2800RPM) speeds for different cleaning requirements
- IP55 protection level with built-in thermal protection
- High energy efficiency design
- Compatible with Australian Water Blaster equipment for direct replacement
Applications: Commercial high-pressure cleaning, industrial cleaning, domestic cleaning, car washing
Pool Pump Motor
- 56J Frame - mainstream installation size in Australia
- Power options: 1HP, 1.5HP, 2HP, 3HP
- Protection types: ODP (Open Drip Proof) and TEFC (Totally Enclosed Fan Cooled)
- PSC capacitor start for stable operation
- Compliant with Australian power grid and safety standards
Applications: Above-ground pools, in-ground pools, residential pools, commercial pools and SPA equipment
General AC Induction Motor
High torque and low noise design with customizable IP rating. Supports single-phase/three-phase AC power supply. Customizable to customer specifications for various industrial, commercial and domestic power equipment with strong versatility.
Core Advantages
- Australian Standard Compatibility: Fully compliant with Australian Standards, 240V/50Hz operation, directly compatible with local equipment
- Multi-scenario Compatibility: Covers high-pressure washers and pool pumps simultaneously, suitable for commercial, industrial and domestic use
- Stability and Durability: AC induction motor core with thermal protection, IP55 protection (optional), corrosion and aging resistance
- Flexible Procurement: Supports wholesale, OEM customization and original replacement with pool motor replacement parts
- High Energy Efficiency: Efficient motor design reduces energy consumption, compliant with Australian environmental standards
Technical Specifications
| Parameter Category | Specific Specifications |
|---|---|
| Voltage/Frequency | 240V, 50Hz (Australian Standard) |
| Motor Type | AC Induction Motor (Asynchronous Motor) |
| Power Range | 1HP-3HP (Pool Pump Motor); Multiple power options (High Pressure Washer Motor) |
| Installation Size | 56J Frame (Pool Pump Motor, mainstream in Australia) |
| Speed | 4-pole (1450RPM), 2-pole (2800RPM) |
| Protection Level | IP55 (optional); ODP/TEFC (Pool Pump Motor) |
| Starting Method | PSC Capacitor Start, Capacitor Start (optional) |
| Special Function | Thermal Protected |
