2 Pole Electric Water Pump Single Phase Capacitor Start Motor MYT712-2 0.75KW 1HP

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT712-2
Minimum Order Quantity 1CBM
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month
Product Details
Product Name Pool Pump Motor Application Swimming Pool Pump
Output 1HP/0.75KW Pole 2
Efficiency IE1,IE2 Performance High Reliability
Capacitor Type Capacitor Running Phase Single Phase
High Light

single phase capacitor start motor


single phase asynchronous motor

Leave a Message
Product Description

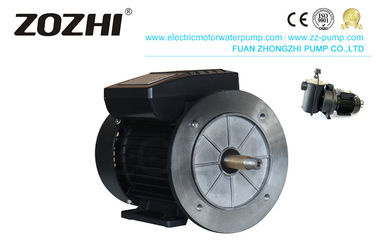

2 Pole Electric Water Pump Single Phase Capacitor Start Motor MYT712-2 0.75KW 1HP

Pool Pump Motor Description

MYT series motors are single-phase squirrel-cage asynchronous motors with high efficiency, energy-saving, and reliable operation. The efficiency can reach IEC60034-30, IE2. It uses cold-rolled silicon steel as the magnetic material, the insulation material, and insulation process is greatly improved; the end shield with cooling ribs makes the appearance beautiful and enhances the heat dissipation performance; the top junction box can be fully installed, or it can be installed on the left or right side. To meet the different requirements of customers, with its unique configuration design, it is closer to the European market style.


  • Motor model: MYT712-2
  • Power: 1HP/0.75KW
  • Voltage(V) : 220V /50HZ
  • Protection: IP54
  • Insulation Class: B
  • Ambient temperature: -15℃≦0≦40℃


Production data


Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) T start/Tn Tmax/Tn
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7





Single-phase electric water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and increased insulation grade. It is the best choice for swimming pool pumps.

2 Pole Electric Water Pump Single Phase Capacitor Start Motor MYT712-2 0.75KW 1HP 0


Pool Pump Motor General data

Frame size 80
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 8.5 kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level

three phase electric motor

Pool Pump Motor Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


Our service

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.




Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
