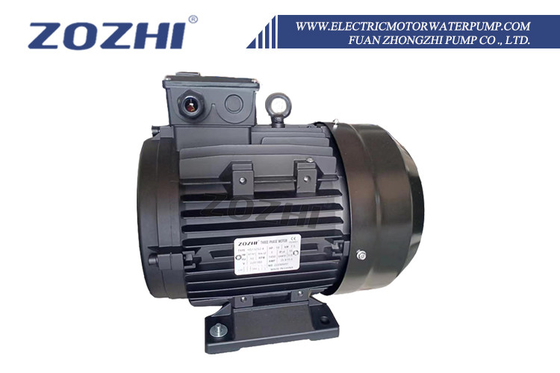

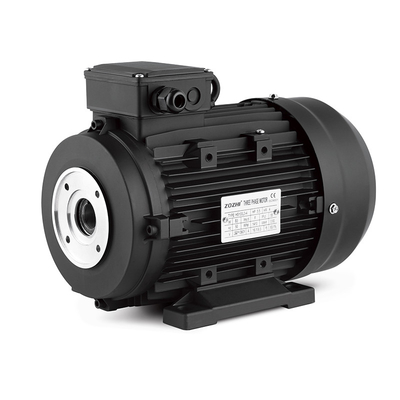

7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump

  • 7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump
Place of Origin CHINA
Brand Name ZOZHI
Model Number MS112M2-4

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Frequency 50HZ/60HZ Mounting Type IMB3/IMB5
Noise Level ≤75dB Efficiency ≥IE2
Rated Voltage 220V/380V/440V/550V/660V Altitude ≤1000m
Insulation Class F/H Motor Type Induction
High Light

Italy High Pressure Pump Motor

,

High Pressure Pump Hollow Shaft Motor

,

7.5kw 10HP Hollow Shaft Motor
Leave a Message
Product Description

Product Description:

The Hollow Shaft Motor is an ideal choice for high-pressure pumps, pressure washing machines and other industrial applications. Featuring a lightweight aluminum alloy housing, this three-phase asynchronous motor offers reliable performance with a rated power of 0.55KW and a rated torque of 2.2N.m. Its FAN cooling method ensures maximum safety and efficiency, and its weight of only 2.5kg makes it easy to install and transport.



Features:

  • Product Name: Hollow Shaft Motor
  • Rated Power: 0.55KW
  • Rated Torque: 2.2N.m
  • Housing Material: Aluminum Alloy
  • Insulation Class: F
  • Weight: 2.5kg
  • Application: Ideal for three phase asynchronous motor, high pressure pump and pressure washing machine.





Application



The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.

7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 0












Advantage





Popular motor to support you to win the market





High-Efficiency Motor High-standard material with 100% output



Population Motor Get good feedback from customer



OEM & ODM Customized service



Direct manufacturer 24 hours online service



3 Years Warranty Almost without any after service



7 days shipment Stock Material





Relate Products





7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 1 7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 2 7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 3

Hollow Shaft Motor

Three Phase Motor

Hollow Shaft Motor

Single Phase Motor

Solid Shaft Motor

3 Phase Motor
7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 4 7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 5 7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 6

Solid Shaft Motor

Mono phase Motor

Solid Shaft Motor

AC induction single-phase motor

Electric Centrifugal Switch

For Single Phase Motor





Factory Picture



7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 7





Customer Feedback

7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 8





Technical Data





Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)





FRAME POWER RPM COSφ EFF.% VOLT AMPERE
K.W. HP P.F. V A
HS90L1-2 2.2 3 2820 0.86 78 400 4.9
HS90L2-2 3 4 2820 0.86 78 400 6.6
HS90L3-2 3.7 5 2820 0.80 83 400 8.6
HS100L1-2 3 4 2840 0.83 81 400 7
HS100L2-2 4 5.5 2850 0.86 82 400 8.5
HS100M1-2 4 5.5 2830 0.84 82 400 9.4
HS112M2-2 5.5 7.5 2840 0.85 83 400 11.7
HS132S1-2 5.5 7.5 2890 0.86 84 400 11.6
HS132S2-2 7.5 10 2900 0.86 84 400 15.4
HS132M1-2 11 15 2920 0.88 86 400 21.8
HS132M2-2 15 20 2920 0.88 86 400 29.3
HS160M1-2 15 20 2920 0.87 88 400 28
HS160M2-2 18.5 25 2920 0.87 89 400 34
HS160M3-2 22 30 2920 0.87 89.2 400 41
HS90L1-4 1.5 2 1400 0.82 78 400 3.4
HS90L2-4 2.2 3 1400 0.79 77 400 5.4
HS90L3-4 2.6 3.5 1400 0.80 78 400 7.4
HS100L1-4 2.2 3 1400 0.80 81 400 5.1
HS100L2-4 3 4 1410 0.80 81 400 6.9
HS100L3-4 4 5.5 1420 0.80 82 400 9.4
HS100M1-4 4.4 6 1420 0.82 83 400 10
HS112M1-4 4 5.5 1420 0.80 83 400 9
HS112M2-4 5.5 7.5 1430 0.82 84 400 12.1
HS112M3-4 6.2 8.5 1425 0.82 84 400 13.5
HS112L-4 7 9.5 1430 0.80 85 400 13.8
HS132S1-4 5.5 7.5 1430 0.82 84 400 11.7
HS132S2-4 7.5 10 1430 0.84 84 400 15.4
HS132M1-4 9.2 12.5 1430 0.90 85 400 17.8
HS132M2-4 11 15 1430 0.90 87 400 21.3
HS132M3-4 12.5 17 1430 0.88 84 400 26
HS160M1-4 15 20 1450 0.86 89 400 29
HS160M2-4 18.5 25 1450 0.86 90 400 34
HS90L-6 1.1 1.5 910 0.72 72 400 3.2
HS100L-6 1.5 2 910 0.80 74 400 3.9
HS112M1-6 2.2 3 940 0.80 80 400 5
HS112M2-6 3 4 940 0.80 79 400 6.9
HS132S1-6 3 4 940 0.78 80 400 6.9
HS132S2-6 4 5.5 950 0.79 82 400 9
HS132M1-6 5.5 7.5 950 0.79 83 400 12.4
HS132M2-6 7.5 10 950 0.79 83 400 16.5
HS160M1-6 7.5 10 960 0.77 87 400 16.5
HS160M2-6 11 15 960 0.79 88 400 23









Installation Dimension

7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 9



FRAME FLANGE FRAME
M N S A AC B H HC L K
90L 75/87 90/61 7/9 140 175 125 90 220 270 9.5
100L 75/87 90/61 7/9 160 196 140 100 240 315 11
112M 75/87 90/61 7/9 190 220 140 132 275 330 11
132S 87 61 9 216 254 140 132 320 370 12
132M 87 61 9 216 254 178 132 320 409 12
160M 87 61 9 254 310 210 160 410 498 14.5


3 Years Warranty



Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


Certificate

7.5kw 10HP Hollow Shaft High Pressure Pump Motor For Italy High Pressure Plunger Pump 10





RFQ




1. Q: What’s the MOQ? 2. Q: Are you a factory or trading company?

A: A trial sample order is ok. A: Manufacturer. Focus on motors for more than 15 years.


3. Q: Can you accept using our logo? 4. Q: How can I get the sample?

A: Yes, we can do OEM for you. A: Usually, we suggest express for samples.



5. Q: What’s the warranty period? 6. Q: What are your terms of payment?

A: 3 years from shipped on board date. A: 30% advance payment, balance before shipment.
  • .
