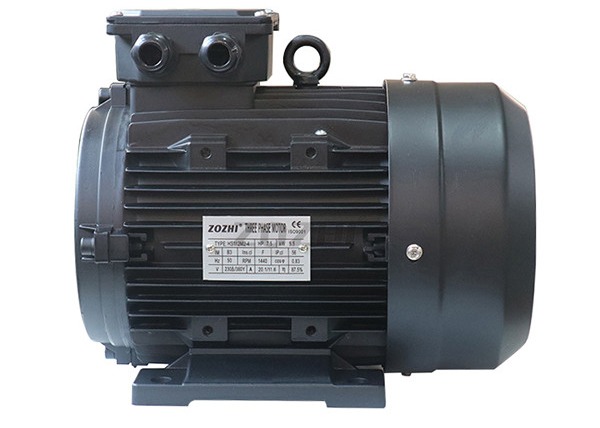

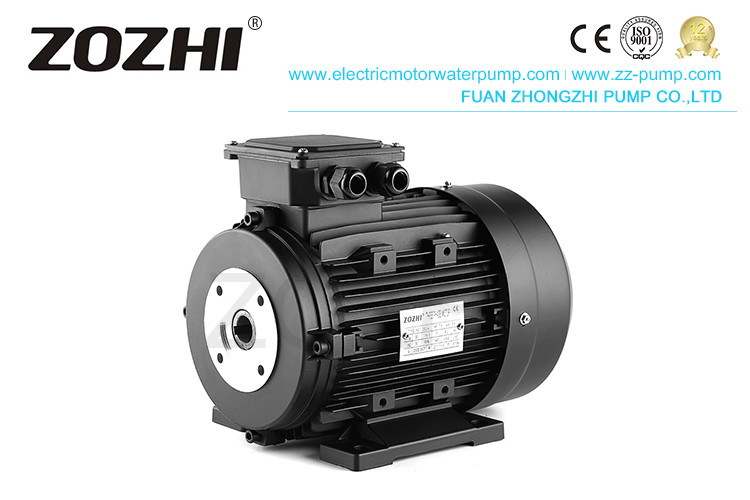

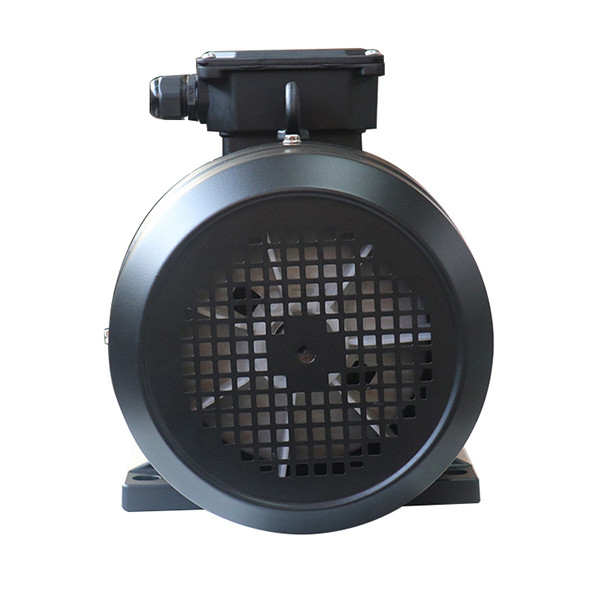

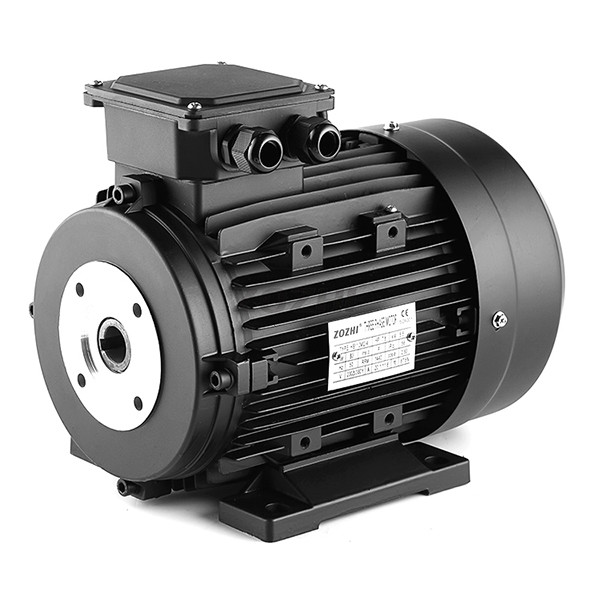

100mm Shaft Length Hollow Shaft Motor With IP55 Protection Class
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xNoise Level | ≤65dB | Rated Voltage | 380V |
---|---|---|---|
Rated Speed | 1450rpm | Cooling Method | IC411 |
Protection Class | IP55 | Product Name | Hollow Shaft Motor |
Ambient Temperature | -20℃~+40℃ | Efficiency | IE2 |
High Light | 100mm Length Hollow Shaft Motor,Three Phase Asynchronous Motor 1450rpm,High Pressure Hollow Shaft Motor |
Product Description:
Our Hollow Shaft Motor is designed for high-pressure pump applications, providing a reliable and efficient solution. It features an F-class insulation, IE2 efficiency, 50Hz rated frequency, and 1450rpm rated speed. Our hollow shaft motor is well-equipped to meet the demands of all your applications, offering superior performance and durability. With its compact design, this motor is ideal for any space-restricted areas. Thanks to its hollow shaft design, it can be easily integrated into your existing systems. Whether you are looking for a reliable and powerful motor or a long-lasting and energy-saving one, this motor is sure to meet all your requirements.
Features:
- Product Name: Hollow Shaft Motor
- Insulation Class: F
- Rated Voltage: 380V
- Efficiency: IE2
- Shaft Length: 100mm
- Weight: 35Kg
Technical Parameters:
Parameter | Value |
---|---|
Efficiency | IE2 |
Life Span | ≥3000h |
Rated Frequency | 50Hz |
Shaft Length | 100mm |
Rated Power | 5.5KW/7.5HP |
Noise Level | ≤65dB |
Hollow Shaft Diameter | Φ24mm |
Ambient Temperature | -20℃~+40℃ |
Cooling Method | IC411 |
Protection Class | IP55 |
Applications:
ZOZHI's Hollow Shaft Motor HS112M2-4 is a three-phase asynchronous motor with high torque and low noise. It is designed with a hollow shaft for pressure washing machines and other applications. With a CE Certificate, this motor is ideal for long-term use. It comes with insulation class F and a 50Hz rated frequency. The cooling method is IC411 and the shaft length is 100mm. The minimum order quantity is 1 and the price is USD165 per unit. The packaging details are CTNS/VENEER CASE and the delivery time is 7 days. Payment terms are 100% before shipment and the supply ability is 10000.
Customization:
Customize your Hollow Shaft Motor for your specific needs with ZOZHI. Our HS112M2-4 model is CE certified with a minimum order quantity of 1 and a price of USD165. It has a cooling method of IC411, a noise level of ≤65dB, a weight of 35 kg, a shaft length of 100mm, and a life span of ≥3000h. This 5.5kw/7.5hp high-pressure pump has a delivery time of 7 days and payment terms of 100% before shipment. You can rest assured that we have a supply ability of 10000.
Support and Services:
We provide excellent technical support and service for our Hollow Shaft Motors. Our team of experts are well-versed in the latest technology and can provide the best advice and guidance to ensure that you get the most out of our product.
We offer a range of services such as installation, maintenance, troubleshooting, repair, and upgrade. Our team of certified professionals will be on hand to provide the best service and advice to ensure that our motors are working at optimal performance.
If you have any questions or concerns regarding our Hollow Shaft Motors, please do not hesitate to contact us. We are always available to help and answer any questions you may have.
Packing and Shipping:
Hollow Shaft Motor products are packaged in a specialized container for safe transport. The container will be sealed using heavy-duty plastic wrap and secured with tape. The container will be labeled with the product description and the customer's shipping address. The container will then be loaded onto a pallet to make sure nothing is damaged during transport.
The product will be shipped via a reliable third-party logistics provider. The provider will ensure that the product is delivered on time and in perfect condition. Furthermore, the provider will provide tracking information to the customer so that they can monitor the progress of their shipment.
Application
ZOZHI Hollow Shaft Motor (HS112M2-4) is a high-performance motor with a hollow shaft design. It is certified by CE, and its rated speed is 1450rpm. It has a protection class of IP55 and a shaft length of 100mm. The rated frequency is 50Hz and the hollow shaft diameter is Φ24mm. It is suitable for high-pressure pumps, pressure washing machines, and water treatment equipment.
The minimum order quantity is 1 and the price is USD165. The packaging detail is CTNS/VENEER CASE and the delivery time is 7 days. The payment terms are 100% before shipment and the supply ability is 10000.
Popular motor to support you in winning the market
High-Efficiency Motor High-standard material with 100% output
Population Motor Get good feedback from customer
OEM & ODM Customized service
Direct manufacturer 24-hour online service
3 Years Warranty Almost without any after service
7 days shipment Stock Material
Relate Products
Hollow Shaft Motor Three Phase Motor |
Hollow Shaft Motor Single Phase Motor |
Solid Shaft Motor 3 Phase Motor |
Solid Shaft Motor Mono phase Motor |
Solid Shaft Motor AC induction single-phase motor |
Electric Centrifugal Switch For Single-phase Motor |
Factory Picture
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
K.W. | HP | P.F. | V | A | |||
HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
HS90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
HS90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
HS90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
HS100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
HS100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
HS100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
HS100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
HS112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
HS112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
HS112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
HS112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
HS132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
HS132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
HS132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
HS132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
HS132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
HS160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
HS160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
HS90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
HS100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
HS112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
HS112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
HS132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
HS132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
HS132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
HS132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
HS160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
HS160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
Installation Dimension
FRAME | FLANGE | FRAME | ||||||||
M | N | S | A | AC | B | H | HC | L | K | |
90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
RFQ
1. Q: What’s the MOQ? 2. Q: Are you a factory or trading company?
A: A trial sample order is ok. A: Manufacturer. Focus on motors for more than 15 years.
3. Q: Can you accept using our logo? 4. Q: How can I get the sample?
A: Yes, we can do OEM for you. A: Usually, we suggest express for samples.
A: 3 years from shipped on board date. A: 30% advance payment, balance before shipment.
