220v 1Hp 158Cpm Centrifugal Single Phase Pump 85L/MIN
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | CPM-130L | Current | 2.4A |
|---|---|---|---|
| H.max | 21m | Q.max | 85L/MIN |
| Pipe | 1"x1" | Insulation | Class B |
| Protection | IP44 | Product Name | Centrifugal Water Pump |
| High Light | 1Hp Centrifugal Single Phase Pump,158Cpm Centrifugal Single Phase Pump,85L/MIN Water Centrifugal Pump |
||
Product Description

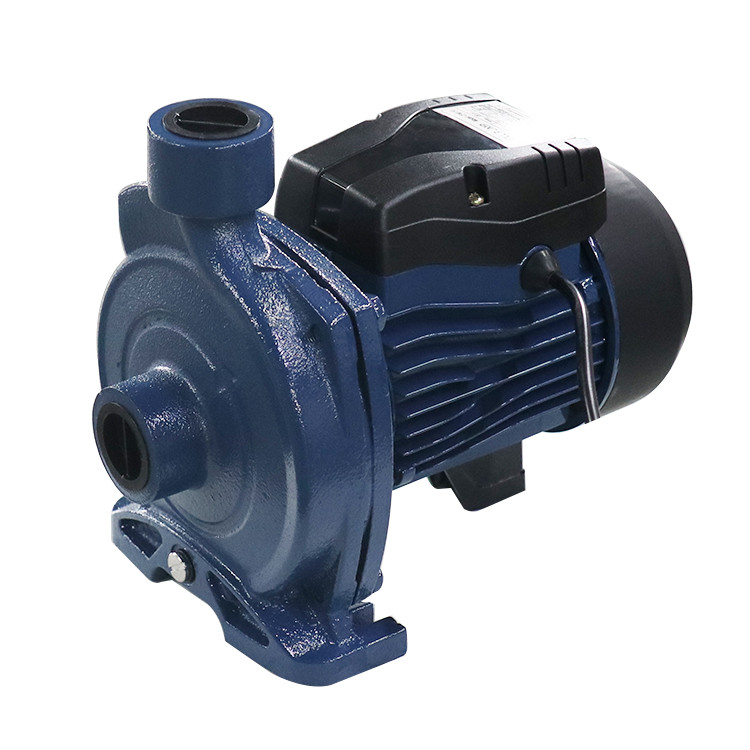

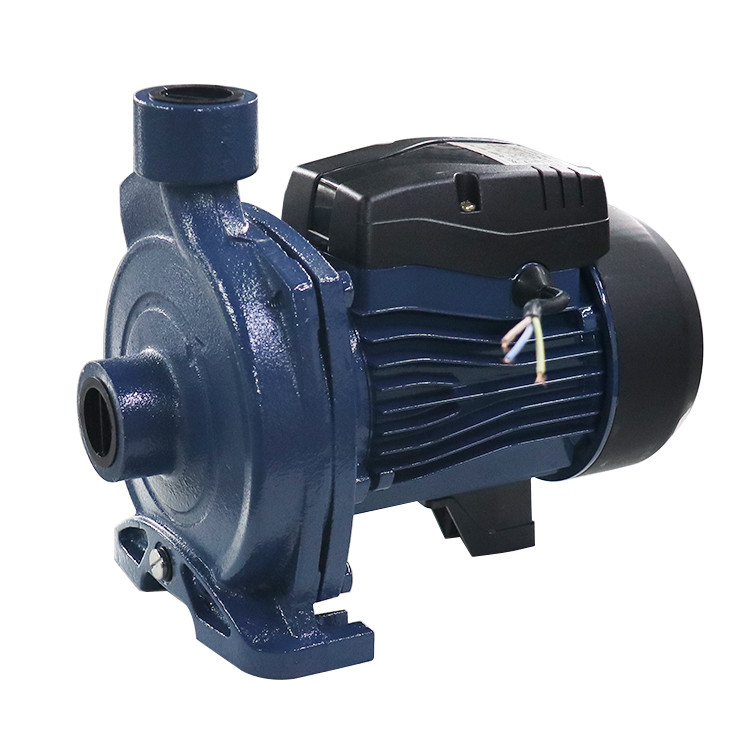

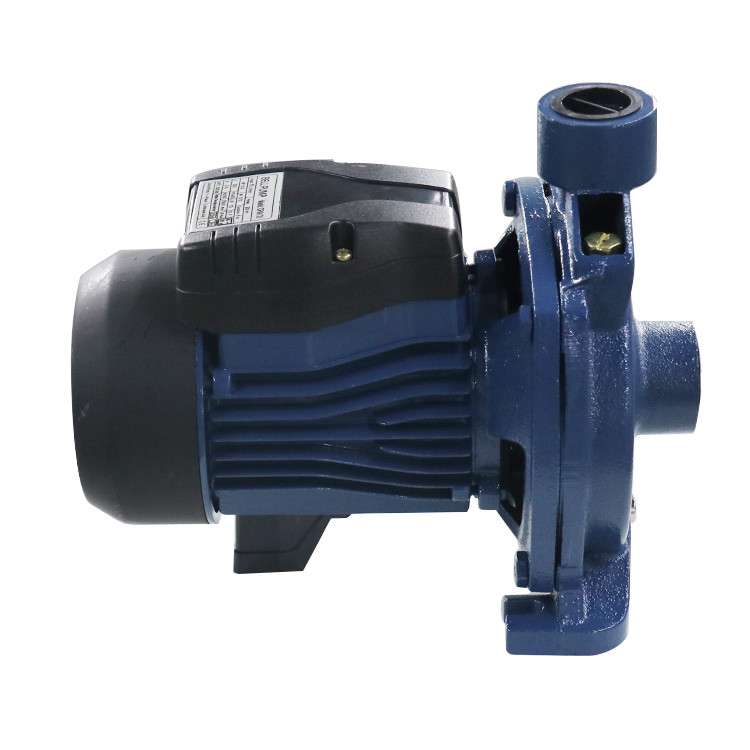

220v 1Hp 158Cpm Centrifugal Single Phase Pump 85L/MIN
Centrifugal Water Pump
Application :
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium-sized pressure sets, for transferring liquids, and for irrigation of gardens and allotments. The pump should be installed in an enclosed environment or at least sheltered from inclement weather.
Liquid type: clean water
Uses: domestic, civil
Applications: water supply systems, air conditioning systems, pressure systems, cooling systems, irrigation pumps, liquids transfer
typology: surface
Family: centrifugal
Performance Range:
- Flow rate up to 160 l/min (9,6 m³/h)
- Head up to 55 m
Application Limit:
- The temperature of the liquid from -10 °C to +90 °C
- Ambient Temperature from da -10 °C to +40 °C
• Manometric suction lift to 7 m
• Max. working pressure:
– 6 bar for CP 100-130-132-150-158
– 10 bar for CP 170-190-200
• Continuous service S1
Technical data(220-240V/50HZ)
| Model | Power | Current | Capacitor | H.Max | Q.Max | Pipe Size | |
| (HP) | (W) | (A) | (UF) | (m) | (L/min) | (m) | |
| CPM-130L | 0.5 | 370 | 2.4 | 10 | 21 | 85 | 1”x1” |
| CPM-140L | 0.75 | 550 | 3.5 | 15 | 28 | 100 | 1”x1” |
| CPM-158L | 1 | 750 | 4.8 | 20 | 32 | 110 | 1”x1” |
INFORMATION
Motor bearing heating analysis
(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.
(2) currently causes ablation of bearing system components and heating of bearing components, resulting in a serious failure of the bearing system.
(3) improper lubrication system leads to bearing heating due to poor lubrication
(4) bearing heating caused by motor temperature rise or operating environment temperature.
Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
