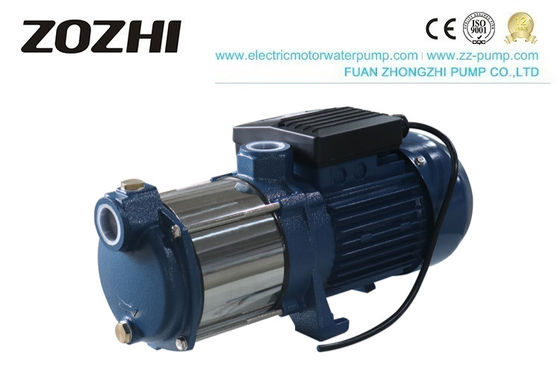

MH 90 Series 50HZ IP55 90L/Min Stainless Steel Multistage Pump

  • MH 90 Series 50HZ IP55 90L/Min Stainless Steel Multistage Pump
  • MH 90 Series 50HZ IP55 90L/Min Stainless Steel Multistage Pump
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MH90
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Suction/discharge Mounting Cast Iron Mechanical Seal Graphite/Silicon Carbide/NBR
Bearing Bearing Steel By NSK Impeller Sabic PPO/stainless Steel
Pump Housing Stainless Steel Diffuser Sabic PPO
Motor Shaft 316 Stainless Product Name Multistage Centrifugal Pump
High Light

90L/Min Stainless Steel Multistage Pump

,

IP55 Stainless Steel Multistage Pump

,

50HZ Horizontal Multistage Pump
Leave a Message
Product Description

Applications



-for domestic and small industrial usage

-garden irrigation

-pressure boosting

-cooling systems



Multistage Centrifugal Pump



General



Guarantee 3 years

Pump type Centrifugal multistage

Pump



Self-priming 7m

Typical noise 64dB

Connection inlet G1”, outlet G1”

The temperature of pumped liquid 0-65℃

Maximum capacity of 90L/min

Head up to 64m



Motor



Asynchronous two poles

Thermal protector inbuilt (single phase)

Protection class IP55

Insulation Class F

Continuous operation S1

Maximum ambient temperature 40℃



Materials



Suction/discharge mounting Cast iron

Mechanical seal Graphite/Silicon carbide/NBR

Bearing steel by NSK

Impeller Sabic PPO/stainless steel

Pump housing Stainless Steel

Diffuser Sabic PPO

Motor shaft 316 stainless



multistage pump



multistage pump
