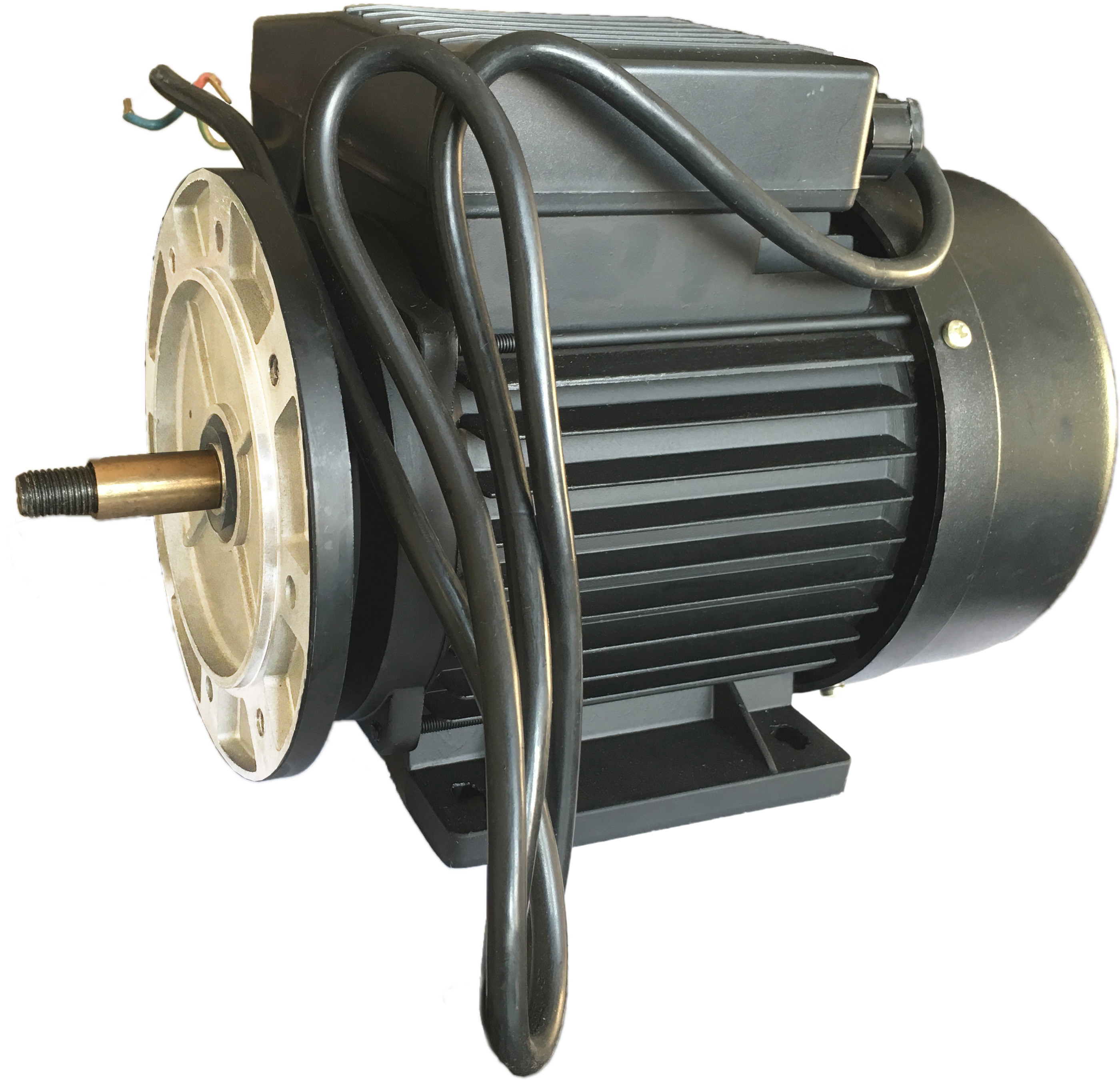

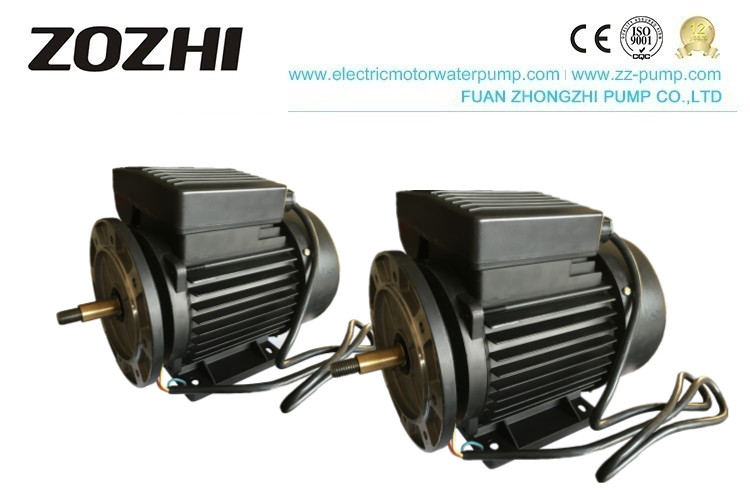

2800rpm 0.55kw 0.75hp AC Asynchronous Motor For Water Pump

  • 2800rpm 0.55kw 0.75hp AC Asynchronous Motor For Water Pump
  • 2800rpm 0.55kw 0.75hp AC Asynchronous Motor For Water Pump
  • 2800rpm 0.55kw 0.75hp AC Asynchronous Motor For Water Pump
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MYT711-2
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Swimming Pool Pump Voltage 220V
Power 0.55kw/0.75hp Speed 2800rpm
Housing Aluminum Duty 1year
Product Name Pool Pump Motor
High Light

0.75hp AC Asynchronous Motor

,

0.55kw AC Asynchronous Motor

,

2800rpm Squirrel Cage Induction Motor
Leave a Message
Product Description
• Single Phase
• Single Speed
• Full rated motor
• Aluminum fan and anodized surface finish on the aluminum motor frame
• TEFC (Totally Enclosed Fan Cooled) motors
• TEFC motors are the perfect upgrade or replacement for your pool pump
• Improved bearing life
• Ambient air is not blown into the motor, preventing corrosion inside
• Aluminum fan and anodized surface finish on the aluminum motor frame
• Easy-to-wire with open access to a large junction box on top of the motor


Application:

>> Designed for the pool pump, bathtub pump, centrifugal pump
>> Be made of selected quality material, the latest design in its entirety
>> Good performance, low noise, little vibration, safe and reliable cooperation
>> Nice appearance, lightweight
>> Be maintained very conveniently, simple construction.

swimming pool pump motor


Operating Conditions:
1. Ambient temperature: -15 degree Celsius≤ θ ≤ 40degree Celsius
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141



Pool Pump Motor Production data



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7







Pool Pump Motor Production line
