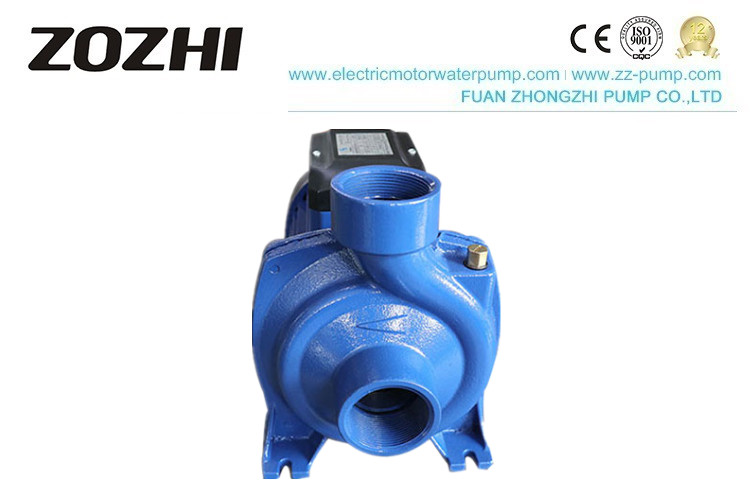

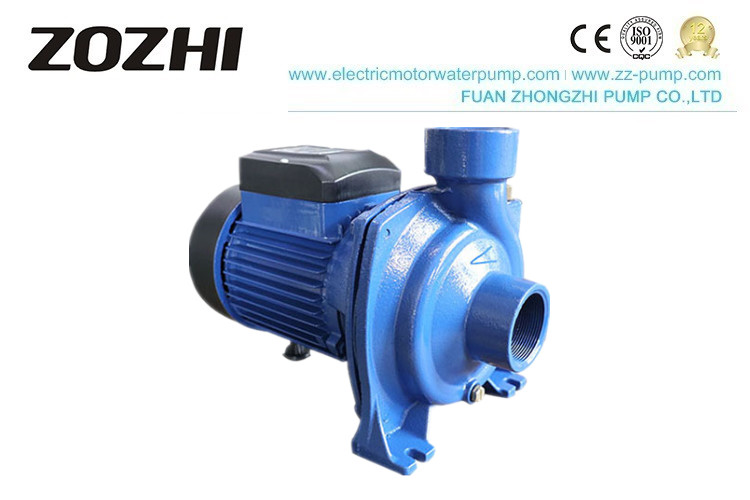

2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump

2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump
2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump 2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump

Large Image :  2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump

Product Details:
Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: NFm-128A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Type: NFm-128A Power: 0.75kw/1.0Hp
Volt: 220V Speed: 2850rpm
H.max: 13.7 Q.Max: 500 L/min
S.Head: 9m Net Weight: 18kg
Measure: 370x220x260mm Product Name: Centrifugal Water Pump
High Light:

0.75kw Drinking Water Pump

,

2850rpm Drinking Water Pump

,

1.0Hp Centrifugal Booster Pump



2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump



Centrifugal Water Pump

Single Phase NFM Centrifugal Pump Motor
NFM series centrifugal pumps are single-stage, high efficient pumps, consisted of a miniature motor and a single impeller centrifugal pump. They have good performance in big capacity and high head.
They are widely used in well-pumping, water supplying, decanting, mixing, irrigating for civil, industry, agriculture, etc.



Applied to pumping such clean liquid, no solid matter or frictional matter, low viscous, noncorrosive, non-crystallizable, chemically neutral, and close to water. Such as:

1. Tank filling

2. Domestic water supply

3. Water transfer

4. Pressure boosting

5. Irrigation





Application

For water supply from wells or reservoirs.
For domestic use. for civil and industrial applications.
For garden use and irrigation



Operating conditions

Max. fluid temperature +60℃

Max. ambient temperature +40℃
Max. solid impurity:0.1%,Max. particle size: 0.2mm



Motor and pump
Rewindable motor
Three-phase: 380V-415V/50HZ

Single-phase: 220V-240/50HZ

Structural characteristics
Pump body: Cast iron
Front cover: Cast iron
Impeller: Brass
Mechanical seal: Burgman
Shaft: Carbon steel/stainless steel
Motor case: Aluminum



Warranty: 1 year
(according to our general sales conditions)

Model Power Ampere Speed Q.Max H. Max S.Head Pipe dia N.W. L×W×H
HP kW (V) (r.p.m) (L/min) (m) (m) (mm) (kg) (mm)
NFm-128B 0.80 0.60 3.20 2850 400 12.5 9 50×50 18 370×220×260
NFm-128A 1.00 0.75 5.20 500 13.7 50×50 22 370×220×260
NFm-129B 1.50 1.10 7.00 500 15 50×50 45 470×265×350
NFm-129A 2.00 1.50 9.60 850 15 50x50 52 500×310×360
NFm-130C 1.50 1.10 7.00 600 12 75×75 32 435×265×350
NFm-130B 2.00 1.50 9.60 850 13 75×75 34 435×265×350
NFm-130A 3.00 2.20 13.90 1000 15 75×75 41 435×265×350


2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump 0

vortex pump

vortex pump

vortex pump

NFM-129 VORTEX PUMP CENTRIFUGAL WATER PUMP



Packaging:



Q: How about the package for the NFM series

A: NFM129A Series pumps are packed in a color box with a strong foam

NFM-129 VORTEX PUMP CENTRIFUGAL WATER PUMP



Reviews from the client:

NFM-129 vortex pump



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump 7





2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump 8

centrifugal water pump vortex water pump

centrifugal electric water pump

2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump 11

2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump 12



2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump 13



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH 2850rpm 0.75kw 1.0Hp Centrifugal Drinking Water Pump 19
water pump water pump mechnical seal



Our service:


1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



Centrifugal Water Pump Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM is welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
