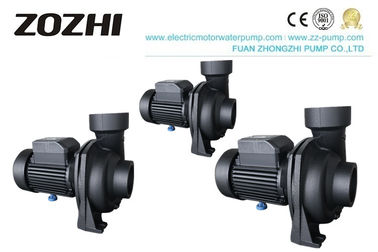

NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation

China NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation supplier
NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation supplier

Large Image :  NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: NFM-129A

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Item Name: Centrifugal Water Pump Power: 2.0HP
Flow Max: 36000 Head Max: 15
Pipe Size: 3"x3" Feature: Gardening Irrigation

High Delivery Rate Centrifugal Water Pump NFM Series 1hp 2hp 3hp



NFM pumps are specially designed to achieve high delivery rates with low to medium heads for industrial and agricultural use. Its volute and impeller make it able to pump water that is even fairly dirty. High delivery rates under a continuous or heavy-duty, making them advantageous for rain and gravity irrigation, for pumping water from lakes, rivers, wells, and for a wide variety of industrial uses where high delivery rates must be achieved at low to average heads. With a single centrifugal impeller mounted on the motor shaft directly, the NFM pumps have a compact size, extremely reliable, very simple to use, and almost maintenance-free. These pumps should be installed in a covered area, protected against the weather.
Pump body: Cast Iron
Impeller: Brass/Cast/Aluminum
Motor: Closed, externally ventilated
Insulation class: B and F
Protection class: IP44 or IP54
Mechanical seal: Stainless steel/Carbon-ceramic
Shaft: 45# Steel / Stainless steel
Thermal protector (if required)
The normal power standard is 220V 50Hz single phase.
Three-phase 220/380V/50Hz, 220/440V/60Hz,
single-phase 230V,240V,127V, 110,115V/60Hz models are available on request.

Product Power 0.6-2.2KW



Model Power Ampere Speed Q.Max H. Max S.Head Pipe dia N.W. L×W×H
HP kW (V) (r.p.m) (L/min) (m) (m) (mm) (kg) (mm)
NFm-128B 0.80 0.60 3.20 2850 400 12.5 9 50×50 18 370×220×260
NFm-128A 1.00 0.75 5.20 500 13.7 50×50 22 370×220×260
NFm-129B 1.50 1.10 7.00 500 15 75×75 45 470×265×350
NFm-129A 2.00 1.50 9.60 850 15 100×100 52 500×310×360
NFm-130C 1.50 1.10 7.00 600 12 75×75 32 435×265×350
NFm-130B 2.00 1.50 9.60 850 13 75×75 34 435×265×350
NFm-130A 3.00 2.20 13.90 1000 15 75×75 41 435×265×350




NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation



NFM water pump





Attention to Parts:

NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation

Application

NFM water pump



Production line

NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation



NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation
water pump water pump mechnical seal



Our service:


1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
