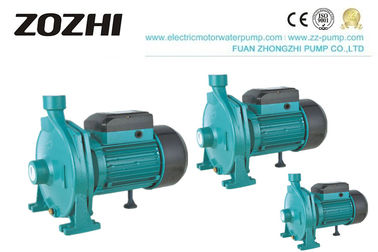

High Flow Rate Centrifugal Booster Pump, 0.5-2.0hp self pumping water pump 2850RPM

Centrifugal Water Pump

Application:

• Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made
• As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium-sized pressure sets, for transferring liquids, and for irrigation of gardens and allotments. The pump should be installed in an enclosed environment or at least sheltered from inclement weather.

Construction:

• Pump body: Cast iron
• Pump support: Cast iron
• Motor housing: Aluminum
• Impeller: Brass
• Motor shaft: Carbon steel, AISI304SS if a request
• Mechanical seal: SIC/Graphite
• Bearings: C&U

Motor:

     Two-pole induction motor (n=2850 r.p.m)

     Insulation Class B

     Protection IP44

     Continuous service S1

     Thermal protector for single phase

     Single-phase 220V/50HZ, 60HZ if a request

     Three-phase 380V/50HZ, 60HZ if a request

Working Conditions:

• Liquid temperature up to +60℃
• Ambient temperature up to + 40℃
• Total suction lift to 8m

Model	Single-phase Motor				n=2850r/min
	Input max KW	Output Power		Current	Q.Max	H. Max	Suct max
		kW	HP	A	(L/min)	(m)	(m)
CPM-130	0.60	0.37	0.50	0.9	75	20	9
CPM-146	0.75	0.55	0.75	3.8	100	25
CPM-158	1.10	0.75	1.00	5.2	110	32
CPM-180	1.50	1.10	1.50	7.0	130	42
CPM-200	2.02	1.50	2.00	9.6	150	50

                                                        Other voltages and frequencies available on request

Model	DIMENSIONS(mm)																	PACKAGE DIMENSIONS&G.W
	DNA		DNM		a	b	c	d	e	f	g	h	i	j	k	l	m	A	B	H	KG
	Inch	mm	Inch	mm
CPM-130	1"	25	1"	25	295	--	--	42	170	135	10	82	211	--	--	--	--	310	170	230	8.9
CPM-146	1"	25	1"	25	305	--	--	44	190	160	10	100	242	--	--	--	--	340	210	250	12.2
CPM-158	1"	25	1"	25	305	--	--	44	190	160	10	100	242	--	--	--	--	340	210	250	13.8
CPM-180	1"	25	1"	25	360	--	--	53	207	160	10	112	262	--	--	--	--	425	250	320	21
CPM-200	1"	25	1"	25	388	32	--	60	207	160	10	112	259	--	--	--	--	425	250	320	23

Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
