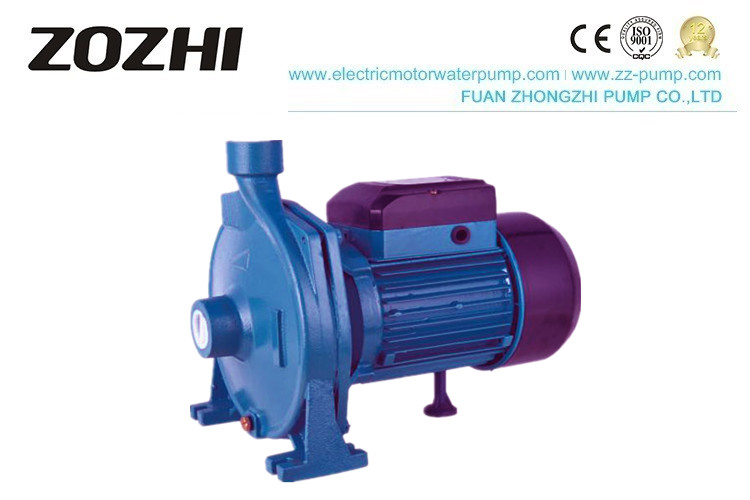

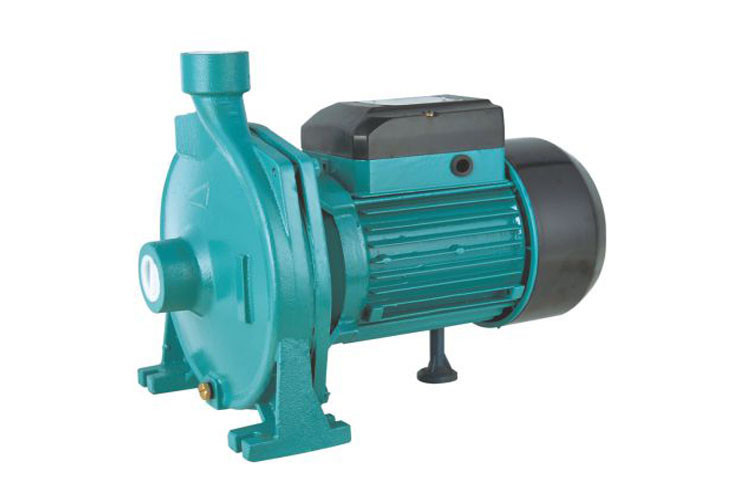

Electric High Pressure Water Pump CPM-180 1.5Kw For Agricultural Irrigation

China Electric High Pressure Water Pump CPM-180 1.5Kw For Agricultural Irrigation supplier
Electric High Pressure Water Pump CPM-180 1.5Kw For Agricultural Irrigation supplier Electric High Pressure Water Pump CPM-180 1.5Kw For Agricultural Irrigation supplier

Large Image :  Electric High Pressure Water Pump CPM-180 1.5Kw For Agricultural Irrigation

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: CPM-180

Payment & Shipping Terms:

Minimum Order Quantity: IPC
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Item Name: Centrifugal Pump Head Max: 42 M
Flow Max: 130L/min Pipe Siza: 1"x1"
RPM: 2850 Power: 1.1/1.5

Electric High-Pressure Pumps CPM-180 1.5Kw Agricultural Irrigation Centrifugal Water Pump



Application:

  • Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water
  • Widely used in vegetable greenhouse water supply, breeding industry water supply, and drainage, water tower water supply, pipeline pressurization, various corollary equipment, etc.
  • These pumps should be installed in a covered area, protected against the weather.

Features:

  • Special anti-rust treatment for cast iron pump body and support
  • 45# steel shaft
  • Brass impeller
  • Insulation: Class B

Working Conditions:

  • Liquid temperature up to +40℃
  • Ambient temperature up to + 40℃
  • Voltage fluctuation should not exceed 10% of the rated value
  • PH: 6.5 to 8.5



Model Single-phase Motor n=2850r/min Electric High Pressure Water Pump CPM-180 1.5Kw For Agricultural Irrigation
Input max KW Output Power Current Q.Max H. Max Suct max
kW HP A (L/min) (m) (m)
CPM-130 0.60 0.37 0.50 0.9 75 20 9
CPM-146 0.75 0.55 0.75 3.8 100 25
CPM-158 1.10 0.75 1.00 5.2 110 32
CPM-180 1.50 1.10 1.50 7.0 130 42
CPM-200 2.02 1.50 2.00 9.6 150 50


                                                        Other voltages and frequencies available on request

Electric High Pressure Water Pump CPM-180 1.5Kw For Agricultural Irrigation

Model DIMENSIONS(mm) PACKAGE DIMENSIONS&G.W
DNA DNM a b c d e f g h i j k l m A B H KG Electric High Pressure Water Pump CPM-180 1.5Kw For Agricultural Irrigation
Inch mm Inch mm
CPM-130 1" 25 1" 25 295 -- -- 42 170 135 10 82 211 -- -- -- -- 310 170 230 8.9
CPM-146 1" 25 1" 25 305 -- -- 44 190 160 10 100 242 -- -- -- -- 340 210 250 12.2
CPM-158 1" 25 1" 25 305 -- -- 44 190 160 10 100 242 -- -- -- -- 340 210 250 13.8
CPM-180 1" 25 1" 25 360 -- -- 53 207 160 10 112 262 -- -- -- -- 425 250 320 21
CPM-200 1" 25 1" 25 388 32 -- 60 207 160 10 112 259 -- -- -- -- 425 250 320 23



Electric High Pressure Water Pump CPM-180 1.5Kw For Agricultural Irrigation
