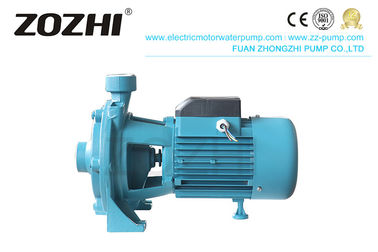

Double Impeller Centrifugal Water Pumps SCM2 For Civil / Industrial Fittings
| Place of Origin | China |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE/SGS/ISO |
| Model Number | SCM2-68 |
| Minimum Order Quantity | 1pc |
| Price | negotiated |
| Packaging Details | Packed in cartons , overall size:480x290x350mm/pc, N.W.: 315kgs |
| Delivery Time | 25 working days after received your payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 30000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Multistage Centrifugal Pump | Application | Watering |
|---|---|---|---|
| Output | 3HP /2.2KW | Flow Max | 150L/Min |
| Head Max | 65M | Suction Max | 9M |
| Phase | Single Phase/3phase | Voltage | 220-240v |
| High Light | industrial water pumps,stainless steel centrifugal pump |
||
Product Description
SCM2 Double Impeller Centrifugal Water Pumps For Civil / Industrial Fittings
Multistage Centrifugal Pump
|
Applications Twin impeller centrifugal water pumps to lift clean water and non-aggressive liquid. The main feature is the two opposite impellers which allow higher lifts than in the single-impeller model. They are qualified for civil and industrial fittings, water distribution by tank pressure groups, and irrigation in gardening and agriculture. |
||||||
|
Operating Limits -Suction lift to 6-8m with foot valve. -Maximum operating pressure: 8 bar. -Maximum ambient temperature:+40℃. -Liquid temperature up to +90℃. -Maximum altitude +1000m. |
Design Features -Pump body/motor support: cast iron. -Impeller: Brass or PPO or “General Electric” -Ejector union: PPO or “General Electric”. -Internal thermal protector. -Motor shaft: AISI1045. -Mechanical seal: NBR/Graphite/Ceramic. |
|||||
|
Motor -Single-phase power supply with capacitor permanently activated. -Insulation class: B -Protection: IP44 -Speed of rotation: 2850rpm -Continuous duty: S1 |
Special Features on request -Stainless steel welding shaft. -AISI420/AISI304/AISI316 stainless steel shaft. -FPM/EPDM/SIC/WC mechanical seal. -Other voltage and frequency. -Three-phase power. |
|||||
TECHNICAL DATA
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. | |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | ||||
| SCM2-45 | 1 / 0.75 | 5.2 | 2850 | 90 | 40 | 9 | 1"x1" | 380x210x240 | 18.8 | |
| SCM2-52 | 1.5 / 1.1 | 7 | 2850 | 105 | 50 | 9 | 1.25"x1" | 415x255x320 | 23.5 | |
| SCM2-60 | 2.0 / 1.5 | 9.6 | 2850 | 130 | 55 | 9 | 1.25"x1" | 415x255x320 | 24.5 | |
| SCM2-68 | 3.0 / 2.2 | 13.5 | 2850 | 150 | 65 | 9 | 1.5"x1.25" | 480x290x350 | 31 | |
Other voltages and frequencies available on request
STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | Noryl PPO |
| Stator&Rotor | 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK,SKF, or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
Multistage Centrifugal Pump ADVANTAGE
100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty
GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.
FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
