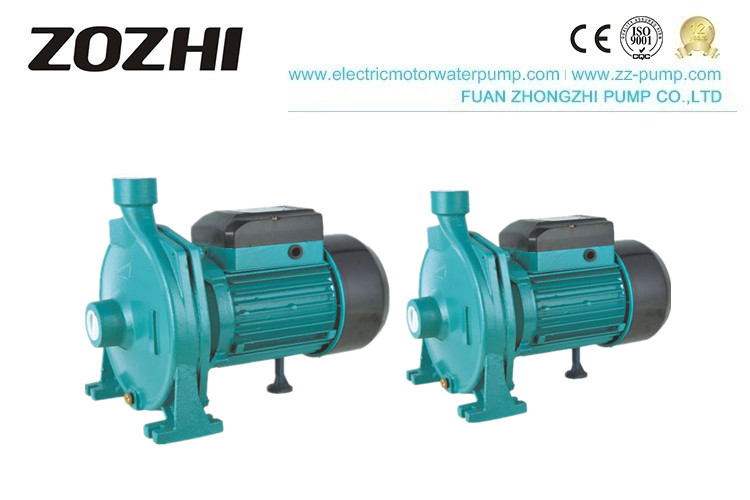

CPM Single Phase Centrifugal Pump Carbon Steel Shaft With Thicker Pump Head
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Centrifugal Water Pump | Head Max | 42 M |
|---|---|---|---|
| Flow Max | 130L/min | Pipe Siza | 1"x1" |
| RPM | 2850 | Power | 1.1/1.5 |
| Highlight | electric centrifugal pump,water centrifugal pump |
||
Product Description

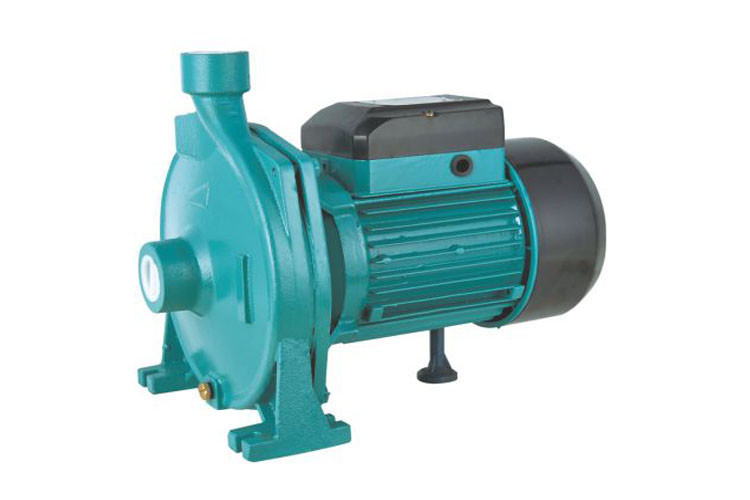

CPM Single Phase Centrifugal Pump Carbon Steel Shaft With Thicker Pump Head

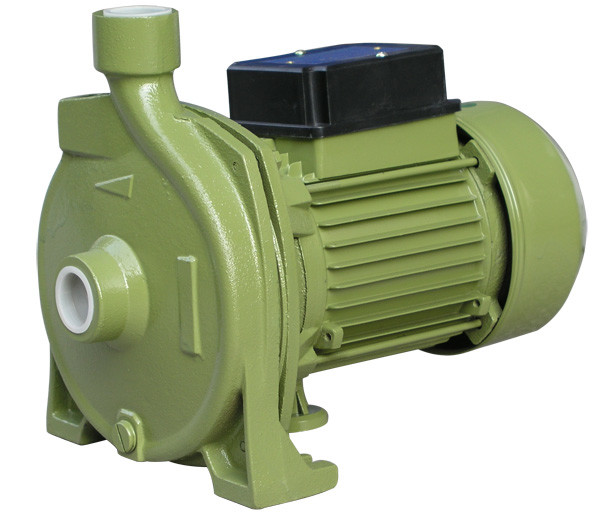

Centrifugal Water Pump
Usage and features
- These pumps are suitable for handling clean water that does not contain abrasive particles and fluids that are not chemically aggressive to the pump components.
- Reliable, economical, and simple to use, they are suitable for domestic applications and the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.
- These pumps should be installed in a covered area, protected against the weather.
Standard data and equipment
- Single-phase 220V/50Hz, brass impeller, carbon steel motor shaft, with thermal protector inside.
- Other models and materials such as three-phase, 110V, 60Hz, dual voltage, stainless shaft, etc., will be available upon request.
Performance range
- Flow rate up to 140L/min(8.4m3/h)
- Head up to 9m
Operating limits
- Suction lift to 9m
- Fluid temperature up to 60℃
- Maximum ambient temperature 40℃
| Model | Single-phase Motor | n=2850r/min |  |
|||||
| Input max KW | Output Power | Current | Q.Max | H. Max | Suct max | |||
| kW | HP | A | (L/min) | (m) | (m) | |||
| CPM-130 | 0.60 | 0.37 | 0.50 | 0.9 | 75 | 20 | 9 | |
| CPM-146 | 0.75 | 0.55 | 0.75 | 3.8 | 100 | 25 | ||
| CPM-158 | 1.10 | 0.75 | 1.00 | 5.2 | 110 | 32 | ||
| CPM-180 | 1.50 | 1.10 | 1.50 | 7.0 | 130 | 42 | ||
| CPM-200 | 2.02 | 1.50 | 2.00 | 9.6 | 150 | 50 | ||
Other voltages and frequencies available on request
| Model | DIMENSIONS(mm) | PACKAGE DIMENSIONS&G.W | ||||||||||||||||||||
| DNA | DNM | a | b | c | d | e | f | g | h | i | j | k | l | m | A | B | H | KG | |
|||
| Inch | mm | Inch | mm | |||||||||||||||||||
| CPM-130 | 1" | 25 | 1" | 25 | 295 | -- | -- | 42 | 170 | 135 | 10 | 82 | 211 | -- | -- | -- | -- | 310 | 170 | 230 | 8.9 | |
| CPM-146 | 1" | 25 | 1" | 25 | 305 | -- | -- | 44 | 190 | 160 | 10 | 100 | 242 | -- | -- | -- | -- | 340 | 210 | 250 | 12.2 | |
| CPM-158 | 1" | 25 | 1" | 25 | 305 | -- | -- | 44 | 190 | 160 | 10 | 100 | 242 | -- | -- | -- | -- | 340 | 210 | 250 | 13.8 | |
| CPM-180 | 1" | 25 | 1" | 25 | 360 | -- | -- | 53 | 207 | 160 | 10 | 112 | 262 | -- | -- | -- | -- | 425 | 250 | 320 | 21 | |
| CPM-200 | 1" | 25 | 1" | 25 | 388 | 32 | -- | 60 | 207 | 160 | 10 | 112 | 259 | -- | -- | -- | -- | 425 | 250 | 320 | 23 | |
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
