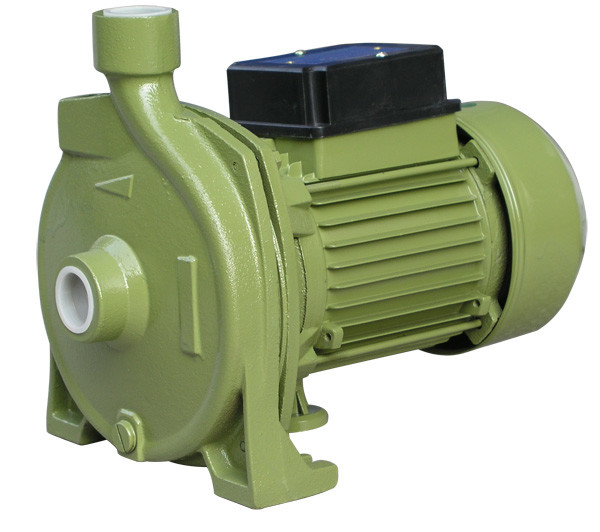

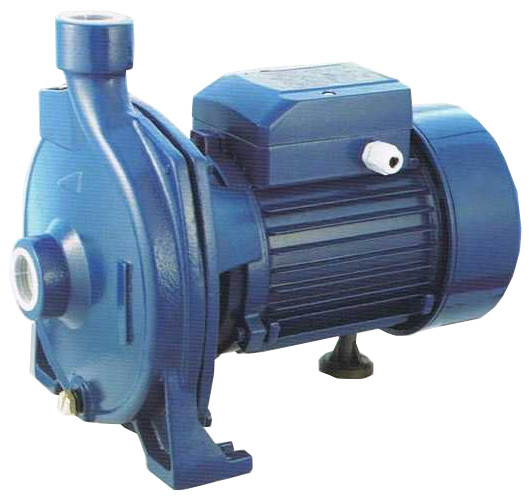

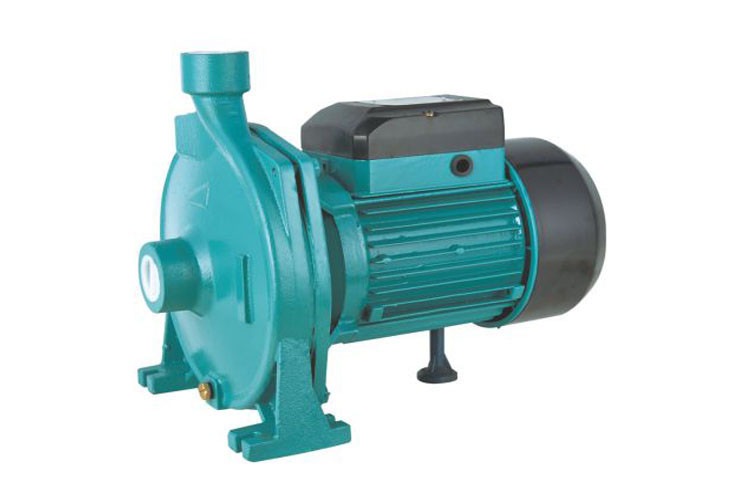

Surface Electric Dewatering Centrifugal Water Pump CPM Small 0.5hp 1hp 2850 RPM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xItem Name | Centrifugal Water Pump | Head Max | 42 M |
---|---|---|---|
Flow Max | 130L/min | Pipe Siza | 1"x1" |
RPM | 2850 | Power | 1.1/1.5 |
High Light | electric centrifugal pump,water centrifugal pump |
Surface Electric Dewatering Centrifugal Water Pump CPM Small 0.5hp 1hp 2850 RPM
Centrifugal Water Pump
Application
Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous,
noncorrosive, non-crystallizable, chemically neutral, and close to water.
Features
1. 100%copper wire and automatic wiring.
2. Brass impeller.
3. Cold-rolled silicon steel sheet, with high-speed punching, improves efficiency and precision.
4. CNC precision automatic lathe for smoother shaft, our owner casting factory.
5. Strict test including high-pot testing of stator coil and whole pump, outgassing test, and performance
test, etc
6. New shape design with patent protection.
7. Anti-rust treatment castings and electrophoresis.
8. 1-year warranty.
Model | Single-phase Motor | n=2850r/min | ||||||
Input max KW | Output Power | Current | Q.Max | H. Max | Suct max | |||
kW | HP | A | (L/min) | (m) | (m) | |||
CPM-130 | 0.60 | 0.37 | 0.50 | 0.9 | 75 | 20 | 9 | |
CPM-146 | 0.75 | 0.55 | 0.75 | 3.8 | 100 | 25 | ||
CPM-158 | 1.10 | 0.75 | 1.00 | 5.2 | 110 | 32 | ||
CPM-180 | 1.50 | 1.10 | 1.50 | 7.0 | 130 | 42 | ||
CPM-200 | 2.02 | 1.50 | 2.00 | 9.6 | 150 | 50 |
Other voltages and frequencies available on request
Model | DIMENSIONS(mm) | PACKAGE DIMENSIONS&G.W | ||||||||||||||||||||
DNA | DNM | a | b | c | d | e | f | g | h | i | j | k | l | m | A | B | H | KG | ||||
Inch | mm | Inch | mm | |||||||||||||||||||
CPM-130 | 1" | 25 | 1" | 25 | 295 | -- | -- | 42 | 170 | 135 | 10 | 82 | 211 | -- | -- | -- | -- | 310 | 170 | 230 | 8.9 | |
CPM-146 | 1" | 25 | 1" | 25 | 305 | -- | -- | 44 | 190 | 160 | 10 | 100 | 242 | -- | -- | -- | -- | 340 | 210 | 250 | 12.2 | |
CPM-158 | 1" | 25 | 1" | 25 | 305 | -- | -- | 44 | 190 | 160 | 10 | 100 | 242 | -- | -- | -- | -- | 340 | 210 | 250 | 13.8 | |
CPM-180 | 1" | 25 | 1" | 25 | 360 | -- | -- | 53 | 207 | 160 | 10 | 112 | 262 | -- | -- | -- | -- | 425 | 250 | 320 | 21 | |
CPM-200 | 1" | 25 | 1" | 25 | 388 | 32 | -- | 60 | 207 | 160 | 10 | 112 | 259 | -- | -- | -- | -- | 425 | 250 | 320 | 23 |
Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
