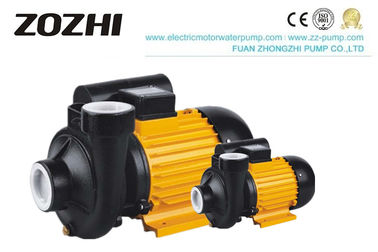

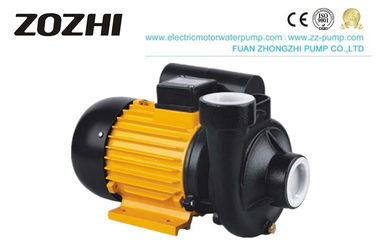

Single Stage Horizontal Centrifugal Water Pump Electrophoresis 2DKM-20 Wide Flow

China Single Stage Horizontal Centrifugal Water Pump Electrophoresis 2DKM-20 Wide Flow supplier
Single Stage Horizontal Centrifugal Water Pump Electrophoresis 2DKM-20 Wide Flow supplier Single Stage Horizontal Centrifugal Water Pump Electrophoresis 2DKM-20 Wide Flow supplier

Large Image :  Single Stage Horizontal Centrifugal Water Pump Electrophoresis 2DKM-20 Wide Flow

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: 2DKM-20

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Item Name: Centrifugal Water Pump Power: 1.5KW/2.0HP
Flow Max: 540 L/min Head Max: 23m
S. HEAD: 9M Pipe Size: 2.0"x2.0"
Rpm: 2850 Weigh: 25kg

electrophoresis single-stage horizontal centrifugal water pump 2DKM-20 wide flow irrigation pump



Description:



2DKM-20 centrifugal clean water pump is a low-lift, wide-flow pump. It is mainly used for irrigation. It consists of three parts of the pump, motor ,and fan blades. The pump part uses electrophoretic spray paint to effectively prevent rust. The motor uses NSK bearings, all copper coils, and overload protection. To prevent the temperature rising too high, a single end mechanical seal is used between the pump and the motor.



Application:

  • Residential irrigation system
  • Commercial irrigation system
  • New irrigation systems
  • Drip Irrigation

Working conditions

Potable water or other clean, thin or non-aggressive liquids

The PH value of the medium is between 6.5-8.5;
The volume ratio of solid impurities in water does not exceed 0.1%, and the particle size is not greater than 0.2mm;
The power frequency is 50Hz, the voltage is single-phase 220V / three-phase 380V, and the voltage fluctuation range is 0.9-1.1 times the rated value;

The air in the pump must be drained before use, otherwise, the pumping cannot be performed normally

Max Temperature of Fluid up to+80oC.
Max Pressure:10bar.
Max Ambient Temperature up to40oC.





Technical data:



Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
1.5DKM-16 0.75 / 0.55 4 2850 180 16 9 1.5"x1.5" 320x180x210 9.9
1.5DKM-20 1 / 0.75 4.8 2850 240 20 9 1.5"x1.5" 320x180x210 12
2DKM-16 1.5 / 1.1 6.2 2850 480 21 9 2"x2" 380x235x250 23
2DKM-20 2.0 / 1.5 9.4 2850 540 23 9 2"x2" 380x235x250 25



DKM water pump

Structural characteristics:



Main Specification Standard Optional
Transmission medium Clean Water, sewage water and fluids
Pump body Cast Iron
Impeller Brass with centrifugal radial flow
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



DKM centrifugal water pump



Attention to Parts:

centrifugal water pump

Application:

centrifugal water pump



Production line:

centrifugal water pump for sales

Products Video

centrifugal water pump




Our service:


1). We are very glad that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM is welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
