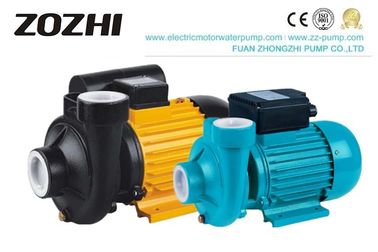

540 L/ Min 2Hp Centrifugal Water Pump 2DKM-20 For Apartment / House Water Supply
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Centrifugal Water Pump | Power | 1.5KW/2.0HP |
|---|---|---|---|
| Flow Max | 540 L/min | Head Max | 23m |
| S. HEAD | 9M | Pipe Size | 2.0"x2.0" |
| Rpm | 2850 | Weigh | 25kg |
| Highlight | electric centrifugal pump,water centrifugal pump |
||
Product Description
540 L/ Min 2Hp Centrifugal Water Pump 2DKM-20 For Apartment / House Water Supply
Centrifugal Water Pump Description:
Water pump voltage single-phase 220V / three-phase 380V, frequency 50HZ, registered by three parts of the motor, water pump and seal, electrophoretic water pump, corrosion resistance, motor copper coil, NSK bearing, the single-end mechanical seal between the water pump and motor Motor with thermal protection to prevent high-temperature operation and overcurrent.
Working conditions and Advantage
Max Temperature of Fluid up to+80oC.
Max Pressure:10bar.
Max Ambient Temperature up to40oC.
Compact structure
Wide range flow
Wide head range
Suitable for mildly corrosive liquids
Uniform flow, stable operation, and low vibration. No special damping foundation is required.
Centrifugal Water Pump Application:
Apartment and house water supply.
Circulation for pool and pond.
Sprinkling water for plants in the garden
Car Washing.
Fish breeding.
Drain groundwater.
Irrigation.
Technical data:
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
| 1.5DKM-16 | 0.75 / 0.55 | 4 | 2850 | 180 | 16 | 9 | 1.5"x1.5" | 320x180x210 | 9.9 |
| 1.5DKM-20 | 1 / 0.75 | 4.8 | 2850 | 240 | 20 | 9 | 1.5"x1.5" | 320x180x210 | 12 |
| 2DKM-16 | 1.5 / 1.1 | 6.2 | 2850 | 480 | 21 | 9 | 2"x2" | 380x235x250 | 23 |
| 2DKM-20 | 2.0 / 1.5 | 9.4 | 2850 | 540 | 23 | 9 | 2"x2" | 380x235x250 | 25 |
Structural characteristics:
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water, sewage water, and fluids | |
| Pump body | Cast Iron | |
| Impeller | Brass with centrifugal radial flow | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
Attention to Parts:
Application:
Production line:
Products Video
Our service:
1). We are thrilled that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM is welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
1 year.
