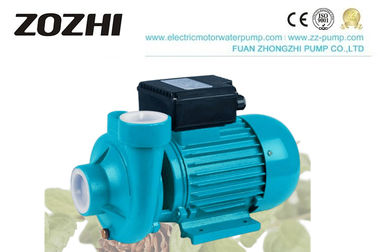

0.75KW Centrifugal Water Pump , Single Stage Volute Pump 1HP Irrigation 1.5DKM-20
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Centrifugal Water Pump | Power | 0.75KW/1HP |
|---|---|---|---|
| Flow Max | 240 L/min | Head Max | 20m |
| S. HEAD | 9M | Pipe Size | 1.5"x1.5" |
| Rpm | 2850 | Weigh | 12kg |
| High Light | electric centrifugal pump,water centrifugal pump |
||
Product Description
0.75KW Centrifugal Water Pump, Single Stage Volute Pump 1HP Irrigation 1.5DKM-20
Centrifugal Water Pump Description:
DKM centrifugal pump is a kind of volute pump. It is used to transport clean water, thin or non-corrosive liquids. Due to the large caliber, large flow rate and low head, the volume ratio of solid impurities in water in the liquid medium does not exceed 0.1%, and the particle size is not greater than 0.2mm; can be used for irrigation system, water supply and drainage of river water, well water, etc., such as rural, aquaculture, garden water delivery, ensuring safe and convenient use.
Advantage
Compact structure
Wide range flow
Wide head range
Suitable for mildly corrosive liquids
Multiple control options
Uniform flow, stable operation, and low vibration. No special damping foundation is required.
Equipment installation, maintenance, and repair costs are low.
Application:
Liquid transfer
cooling system
Industrial cleaning system
Aquaculture farm
Fertilization system
Metering system
Industrial equipment
Centrifugal Water Pump Technical data:
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
| 1.5DKM-16 | 0.75 / 0.55 | 4 | 2850 | 180 | 16 | 9 | 1.5"x1.5" | 320x180x210 | 9.9 |
| 1.5DKM-20 | 1 / 0.75 | 4.8 | 2850 | 240 | 20 | 9 | 1.5"x1.5" | 320x180x210 | 12 |
| 2DKM-16 | 1.5 / 1.1 | 6.2 | 2850 | 480 | 21 | 9 | 2"x2" | 380x235x250 | 23 |
| 2DKM-20 | 2.0 / 1.5 | 9.4 | 2850 | 540 | 23 | 9 | 2"x2" | 380x235x250 | 25 |
Structural characteristics:
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water, sewage water, and fluids | |
| Pump body | Cast Iron | |
| Impeller | Brass with centrifugal radial flow | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
Attention to Parts:
Application:
Technical Data:
Production line:
Products Video
|
|
|
|
|
|
|
|
|
Our service:
1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM is welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
1 year.
