Pressure Boosting End Suction Centrifugal Pumps 0.55KW 0.75HP 1.5DKM-16 Anti Rust

China Pressure Boosting End Suction Centrifugal Pumps 0.55KW 0.75HP 1.5DKM-16 Anti Rust supplier
Pressure Boosting End Suction Centrifugal Pumps 0.55KW 0.75HP 1.5DKM-16 Anti Rust supplier Pressure Boosting End Suction Centrifugal Pumps 0.55KW 0.75HP 1.5DKM-16 Anti Rust supplier

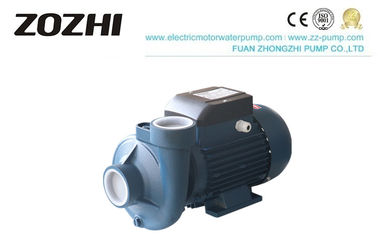

Large Image :  Pressure Boosting End Suction Centrifugal Pumps 0.55KW 0.75HP 1.5DKM-16 Anti Rust

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: 2DKM-16

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Item Name: Centrifugal Water Pump Power: 1.1KW/1.5HP
Flow Max: 480 L/min Head Max: 21m
S. HEAD: 9M Pipe Size: 2.0"x2.0"
Rpm: 2850 Weigh: 23kg

1.5DKM-16 0.55KW/0.75HP DKM series centrifugal water pump end suction centrifugal pumps manufacturers



Description:


Applied to 1.5DKM-16 0.55KW/0.75HP DKM Series pumping such liquid which is clean, no solid matter or frictional matter, low viscous, noncorrosive, non-crystallizable, chemically neutral and close to water. Such as:
1. Tank filling
2. Domestic water supply
3. Water transfer
4. Pressure boosting
5. Irrigation

Features
1. 100% copper wire, brass impeller, and automatic wiring
2. Cold-rolled silicon steel sheet, with high-speed punching, improving the efficiency and precision
3. Demagnetization of stainless steel nuts
4. Anti-rust treatment castings and electrophoresis
5. New testing equipment
6. Certificate: ISO9001, CE, SONCAP, SASO,VOC,EMC,etc


Construction
Pump Body: Cast Iron/Stainless Steel/Brass
Front Cover: Cast Iron/Cast Iron with a brass insert / Aluminum
Impeller: Brass/Aluminum/PPO
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High-Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
With thermal overload protector in single phase motor

Operation Conditions
Suction head up to 9M
Liquid temperature up to 60C
Ambient temperature up to 40C
Max.Pressure:10Bar






Technical data:



Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
1.5DKM-16 0.75 / 0.55 4 2850 180 16 9 1.5"x1.5" 320x180x210 9.9
1.5DKM-20 1 / 0.75 4.8 2850 240 20 9 1.5"x1.5" 320x180x210 12
2DKM-16 1.5 / 1.1 6.2 2850 480 21 9 2"x2" 380x235x250 23
2DKM-20 2.0 / 1.5 9.4 2850 540 23 9 2"x2" 380x235x250 25

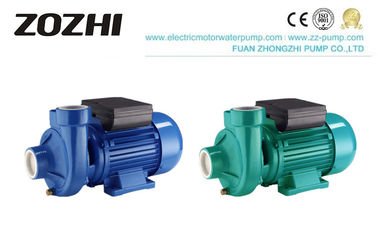

DKM water pump
