Horizontal End Suction Low Pressure Column Pump 2DKM-20 1.5KW 2.0HP For Irrigation

Horizontal End Suction Low Pressure Column Pump 2DKM-20 1.5KW 2.0HP For Irrigation
Horizontal End Suction Low Pressure Column Pump 2DKM-20 1.5KW 2.0HP For Irrigation Horizontal End Suction Low Pressure Column Pump 2DKM-20 1.5KW 2.0HP For Irrigation

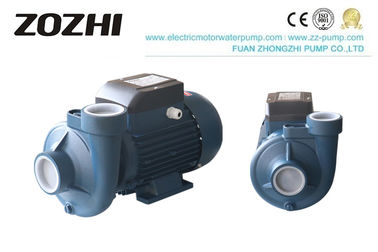

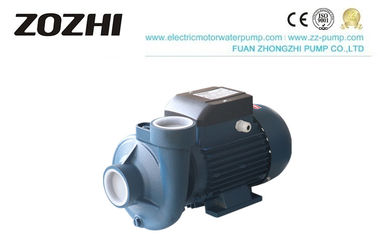

Large Image :  Horizontal End Suction Low Pressure Column Pump 2DKM-20 1.5KW 2.0HP For Irrigation

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: 2DKM-20
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Item Name: Centrifugal Water Pump Power: 1.5KW/2.0HP
Flow Max: 540 L/min Head Max: 23m
S. HEAD: 9M Pipe Size: 2.0"x2.0"
Rpm: 2850 Weigh: 25kg
High Light:

electric centrifugal pump

,

water centrifugal pump

Horizontal End Suction Low-Pressure Column Pump 2DKM-20 1.5KW 2.0HP For Irrigation.



Centrifugal Water Pump Description:



2DKM-20 1.5KW/2.0HP horizontal end suction centrifugal water pumps are specifically designed for farm irrigation, circulation system, and other conditions. Its body and motor bracket are made of cast iron, and the impeller is made of brass or cast iron. The raw material for a mechanical seal is ceramic graphite, and the shaft of the rotor is manufactured using stainless steel or CS45#.

Working conditions

Max Temperature of Fluid up to+80oC.
Max Pressure:10bar.
Max Ambient Temperature up to40oC.





Application:

1. Tank filling
2. Domestic house watering supply
3. Water transfer
4. Pressure boosting
5. Irrigation



Technical data:



Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
1.5DKM-16 0.75 / 0.55 4 2850 180 16 9 1.5"x1.5" 320x180x210 9.9
1.5DKM-20 1 / 0.75 4.8 2850 240 20 9 1.5"x1.5" 320x180x210 12
2DKM-16 1.5 / 1.1 6.2 2850 480 21 9 2"x2" 380x235x250 23
2DKM-20 2.0 / 1.5 9.4 2850 540 23 9 2"x2" 380x235x250 25

DKM water pump





Our service:


1). We are delighted that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



Centrifugal Water Pump Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM is welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
