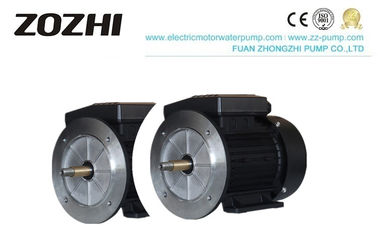

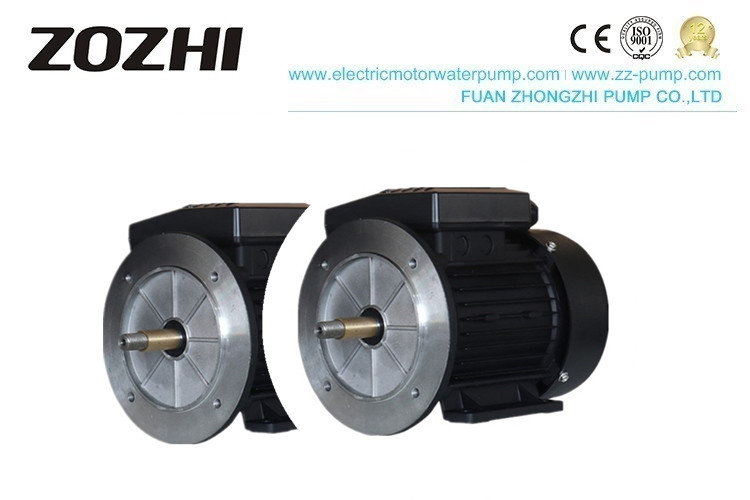

220V Single Phase Induction Motor , Swimming Pooling Pump Motor 50HZ/60HZ
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Pool Pump Motor | Application | Swimming Pool Pump |
---|---|---|---|
Output | 2HP/1.5KW | Pole | 2 |
Efficiency | IE1,IE2 | Performance | High Reliability |
Capacitor Type | Capacitor Running | Phase | Single Phase |
Housing | Aluminium | ||
High Light | single phase capacitor start motor,single phase asynchronous motor |
Single-Phase Induction Motor,220V 50HZ/60HZ 0.75HP 1HP 1.5HP 2HP Swimming Pooling Pump Motor
Pool Pump Motor Description
MYT series aluminum housing three-phase asynchronous motors, with the latest design in entirety, are made of selected quality materials and conform to the IEC standard.
MYT motors have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently while with low noise. Minor vibration, at the same time, lightweight and simple construction. Therefore, these motors can be used for general drive.
1) Superior finish
2) Externally Ventilated
3) Lightweight construction
4) Top-mounted terminal box
5) IP55 Protection
6) Interchangeable foot mounting and flange mounting
Pool Pump Motor Operating Conditions:
1. Ambient temperature: -15℃≦0≦40℃
2. Cooling method: IC0141
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
Production data
Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | T start/Tn | Tmax/Tn | |
HP | KW | |||||||||
MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 |
MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||
MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||
MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |
Application
The Single-phase induction water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and increased insulation grade. It is the best choice for swimming pool pumps.
The electric motor is careful while you use the pump that the water should not exceed.
Production line
General data
Frame size | 80 |
Housing material | Aluminum |
Install model | According to the standard |
Type of feet | Removable feet |
Net weight | 8.7kg |
Insulation class | FH(Standard)(Optional) |
Protection degree | IP 55IP 56(Standard)(Optional) |
Thermal protection | WithoutCustomizable(Standard)(Optional) |
Rotation direction | ClockwiseCounter clockwise(Standard)(Optional) |
Service duty | S1 |
Vibration level | A |
Balance | Half-key balanced |
Cable glands | 1 - M20 × 1.5 |
Cooling | IC 411 |
Painting color | RAL 7024Customizable(Standard)(Optional) |
Regulations | IEC / DIN / ISO / VDE / EN |
Standard | IEC 60034 |
Environmental conditions | |
Ambient temperature | From -20°C to +40°C |
Maximum altitude | 1000 m above sea level |
Pool Pump Motor Guarantee
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Pool Pump Motor Our service
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
INFORMATION
Motor bearing heating analysis
(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.
(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.
(3) improper lubrication system leads to bearing heating due to poor lubrication
(4) bearing heating caused by motor temperature rise or operating environment temperature.
