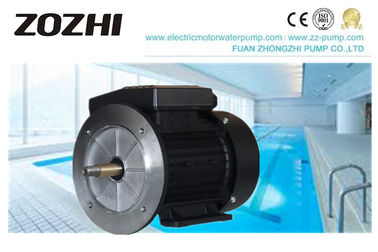

2 Pole Single Phase Asynchronous Motor MYT Series 0.75KW 1HP Enclosed Fan Cooling

China 2 Pole Single Phase Asynchronous Motor MYT Series 0.75KW 1HP Enclosed Fan Cooling supplier
2 Pole Single Phase Asynchronous Motor MYT Series 0.75KW 1HP Enclosed Fan Cooling supplier

Large Image :  2 Pole Single Phase Asynchronous Motor MYT Series 0.75KW 1HP Enclosed Fan Cooling

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: MYT712-2

Payment & Shipping Terms:

Minimum Order Quantity: 1CBM
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Single Phase Induction Motor Output: 0.75KW/1HP
Pole: 2 Efficiency: IE1,IE2
Capacitor Type: Capacitor Running Phase: Single Phase

MYT Series Single Phase Swimming Pool Pump Motor 0.75KW 1HP Single Phase Asynchronous Motor


Description

Heavy-duty single-phase MYT series motors are suitable for powering swimming water pumps. Motors of this series are integrated with up-to-date design, built with the best quality materials and attractive appearance. They have outstanding performance,easy maintenance and are reliable. They completely conform to international I.E.C. standards.



MYT series protected motors are of IP44 totally enclosed fan cooling type. Underrated voltage and 50Hz, the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times. Motors for 4 HP and over are of capacitor start and run type. They all have the advantage of high starting torque, smooth running, low-temperature rise, low noise,  and greater overload performance.



-Good motor cooling for the motor, low power loss

-Within the cooling, low noise standard motor

-Motors with high-quality bearings, long operating life

-with reliability and durability



Mode: MYT712-2

Horsepower: 1

Voltage: 230V

Hertz: 50

Motor housing: Aluminum

Bearing: C&U

RPM:2800

Insulation: Class F

Protection: IP55

Installation: B3

Stator&Rotor: 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire





Production data

Model Power Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7





Application

The motor with the pool pump used for swimming pools.

The water pump is connected to the motor drive shaft, and the axial and radial tolerances do not exceed the specified value

swimming pool pump motor

Skills Requirement
1) The pool motor should be easy to overhaul and maintain, and the design and construction of the motor and its components should be safe.
2) The size of the pool motor should be as compact as possible, and its electrical and mechanical structure is suitable for general pool installation, load, and environmental conditions.
3) The pool motor can work at full load within the range of plus or minus 10% of the rated voltage.
4) All pool motors should have thermal and current overload protection, set inside the motor or at the starting point of the line, providing locking rotation and running protection.
5), security protection level IP55.



General data

Frame size 71
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 5.2 kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level









hollow shaft motor
2 Pole Single Phase Asynchronous Motor MYT Series 0.75KW 1HP Enclosed Fan Cooling

Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making, also we can advise how to make the products according to customers' target prices.
