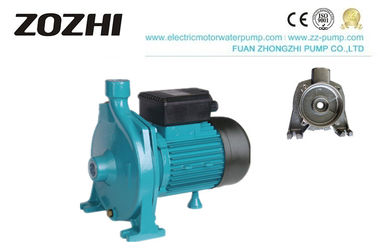

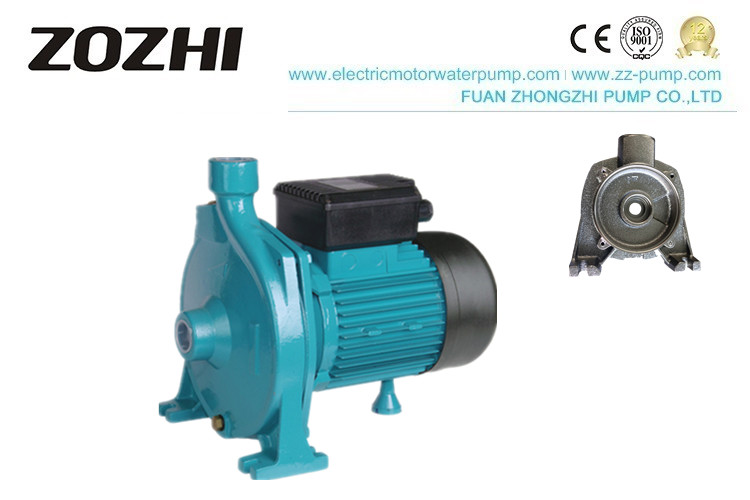

Electrophoresis SCM Series Centrifugal Water Pump 100% Copper 95L/ Min Flow

China Electrophoresis SCM Series Centrifugal Water Pump 100% Copper 95L/ Min Flow supplier

Large Image :  Electrophoresis SCM Series Centrifugal Water Pump 100% Copper 95L/ Min Flow

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: SCM-42

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Item: Centrifugal Water Pump Application: Boosting
Power: 0.75HP /0.55KW Flow Max: 95L/Min
Head Max: 25M Structure: Single-stage Pump
Pipe Size: 1"x1" Feature: Long Life

100% Copper Electrophoresis SCM Series Centrifugal Water Pumps Clean Electric Pump


DESCRIPTION





1. 100% copper wire, and automatic wiring.

2. Brass impeller.

3. cold-rolled silicon steel sheet, with high-speed punching, improves efficiency and precision.

4. CNC precision automatic lathe for smoother shaft, our owner casting factory

5. Strict test including high-pot testing of stator coil and whole pump, outgassing test and performance

test, etc

6. New shape design with patent protection.

7. Anti-rust treatment castings and electrophoresis.





Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous,

noncorrosive, non-crystallizable, chemically neutral and close to water.




SCM-22 CENTRIFUGAL WATER PUMP

FEATURE


1) Enamel technique: clean, healthy, environmental, prevent secondary pollution
2) 100% high quality copper,100% output
3) Cold-rolled silicon steel sheet by a high-speed punching machine
4) Good quality bearing, the surface more smooth, the dimension more precise
5) Thermal protector





STRUCTURAL CHARACTERISTICS


Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



TECHNICAL DATA


Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
SCM-22 0.5 / 0.37 3 2850 75 20 9 1"x1" 310x165x225 8.8
SCM-42 0.75 / 0.55 3.6 2850 95 25 9 1"x1" 340x210x250 12
SCM-50 1 / 0.75 4.8 2850 110 30 9 1"x1" 340x210x250 13.6




 Electrophoresis SCM Series Centrifugal Water Pump 100% Copper 95L/ Min Flow


OUR SERVICE

1). We are very glad that customer gives us some suggestion for price and products.

2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.

3). Offer our customers the lowest prices. Streamline the buying and paying processes.

4). Deliver goods to our customers all over the world with speed and precision.

5). Ensure the excellent quality of our products.

6).12 months FREE warranty.

7). Accept OEM


FAQ

1). Q: How about the MOQ?
     A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
      A: we make water pump, motor, alternator, and diesel generator since 2006.

3).  Q: Can you accept to use our logo?
       A: Yes, we can. Any OEM are welcome!

4).  Q: What are your payment terms?
      A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5).  Q: How about the delivery time?
       A: Usually, 10-30days. But it depends on your order quantity.

6).  Q: How about the warranty?
     A: 1 year from shipped on board date.
