High Head SCM Series Domestic Water Pump 1 Inch 0.5HP/0.37KW SCM-22 For Clean Water

China High Head SCM Series Domestic Water Pump 1 Inch 0.5HP/0.37KW SCM-22 For Clean Water supplier

Large Image :  High Head SCM Series Domestic Water Pump 1 Inch 0.5HP/0.37KW SCM-22 For Clean Water

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: SCM-22

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Item: Centrifugal Water Pump Application: Boosting
Power: 0.5HP /0.37KW Flow Max: 75L/Min
Head Max: 20M Structure: Single-stage Pump
Pipe Size: 1"x1" Feature: Long Life

 1 Inch 0.5HP/0.37KW SCM-22 High Head SCM Series Centrifugal Water Pumps For Clean Water

DESCRIPTION

SCM Centrifugal Pump For Clean Water

Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.

To be used in flow irrigation systems in gardening, agriculture and in industrial fittings.



The SCM series pumps are high-efficient, power-saving and compact in structure, convenient to operate and maintain. The hydraulic characteristic is with high head and small capacity. They are suitable for both domestic and industrial applications to convey clean water and non-aggressive chemical liquid also can be applied to supply the water for garden, hotel, villas and agricultural irrigation, etc.

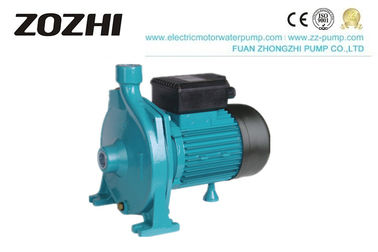

SCM-22 CENTRIFUGAL WATER PUMP

FEATURE


1) Enamel technique: clean, healthy, environmental, prevent secondary pollution
2) 100% high quality copper,100% output
3) Cold-rolled silicon steel sheet by a high-speed punching machine
4) Good quality bearing, the surface more smooth, the dimension more precise
5) Thermal protector





STRUCTURAL CHARACTERISTICS


Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



TECHNICAL DATA


Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
SCM-22 0.5 / 0.37 3 2850 75 20 9 1"x1" 310x165x225 8.8
SCM-42 0.75 / 0.55 3.6 2850 95 25 9 1"x1" 340x210x250 12
SCM-50 1 / 0.75 4.8 2850 110 30 9 1"x1" 340x210x250 13.6




 High Head SCM Series Domestic Water Pump 1 Inch 0.5HP/0.37KW SCM-22 For Clean Water


OUR SERVICE

1). We are very glad that customer gives us some suggestion for price and products.

2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.

3). Offer our customers the lowest prices. Streamline the buying and paying processes.

4). Deliver goods to our customers all over the world with speed and precision.

5). Ensure the excellent quality of our products.

6).12 months FREE warranty.

7). Accept OEM


FAQ

1). Q: How about the MOQ?
     A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
      A: we make water pump, motor, alternator, and diesel generator since 2006.

3).  Q: Can you accept to use our logo?
       A: Yes, we can. Any OEM are welcome!

4).  Q: What are your payment terms?
      A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5).  Q: How about the delivery time?
       A: Usually, 10-30days. But it depends on your order quantity.

6).  Q: How about the warranty?
     A: 1 year from shipped on board date.
