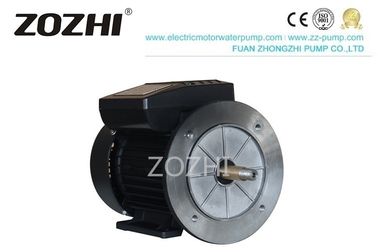

Aluminum Frame Single Phase Electric Motor MYT Series 15KW For Swimming Pool Pump

Aluminum Frame Single Phase Electric Motor MYT Series 15KW For Swimming Pool Pump
Aluminum Frame Single Phase Electric Motor MYT Series 15KW For Swimming Pool Pump

Large Image :  Aluminum Frame Single Phase Electric Motor MYT Series 15KW For Swimming Pool Pump

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: MYT802-2

Payment & Shipping Terms:

Minimum Order Quantity: 1CBM
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Single Phase Induction Motor Application: Swimming Pool Pump
Output: 2HP/1.5KW Pole: 2
Efficiency: IE1,IE2 Performance: High Reliability
Capacitor Type: Capacitor Running Phase: Single Phase
Housing: Aluminium
High Light:

single phase capacitor start motor

,

single phase asynchronous motor

MYT Series 15KW Aluminum Frame High-Efficiency Electric Motor For Swimming Pool Pump


Description



The aluminum electric motor is a fully enclosed fan-cooled squirrel-cage three-phase AC asynchronous motor. The motor casings are all made of aluminum alloy die-casting. The aluminum shell motor is printed less and is called the green product of the motor industry. It is very popular in many developed countries.


The motor has the advantages of high efficiency, energy-saving, large starting torque, good performance, lightweight, beautiful appearance, high protection level, stable and reliable operation, and the bottom corner is detachable and can be changed into various installation forms. The motor is widely used in domestic swimming pools

swimming pool pump motor

Operating Conditions:


1. Ambient temperature: -15℃≦0≦40℃

2. Cooling method: IC0141
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55



Production data



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7








General data

Frame size 80
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 8.7kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level




Application

Single-phase induction water pump motor has excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and high insulation grade. It is the best choice for swimming pool pumps.



The electric motor so is careful while you use the pump that the water should not exceed.



Aluminum Frame Single Phase Electric Motor MYT Series 15KW For Swimming Pool Pump 1



Production line

three phase electric motor

Aluminum Frame Single Phase Electric Motor MYT Series 15KW For Swimming Pool Pump 3





Aluminum Frame Single Phase Electric Motor MYT Series 15KW For Swimming Pool Pump 4



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Aluminum Frame Single Phase Electric Motor MYT Series 15KW For Swimming Pool Pump 10
water pump water pump mechnical seal



Aluminum Frame Single Phase Electric Motor MYT Series 15KW For Swimming Pool Pump 14

Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the samples making, also we can advise how to make the products according to customers' target prices.



INFORMATION



Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system in a short time.

(2) current causes ablation of bearing system components, and heating of bearing components, resulting in a serious failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
