Fan Cooling MYT802-2 2HP 2800RPM Pool Pump Motor 1.5KW

  • Fan Cooling MYT802-2 2HP 2800RPM Pool Pump Motor 1.5KW
  • Fan Cooling MYT802-2 2HP 2800RPM Pool Pump Motor 1.5KW
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT802-2
Minimum Order Quantity 1CBM
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pool Pump Motor Application Swimming Pool Pump
Output 2HP/1.5KW Pole 2
Efficiency IE1,IE2 Performance High Reliability
Capacitor Type Capacitor Running Phase Single Phase
Highlight

MYT802-2 Pool Pump Motor

,

2800RPM Pool Pump Motor

,

1.5KW Single Phase Asynchronous Motor
Leave a Message
Product Description

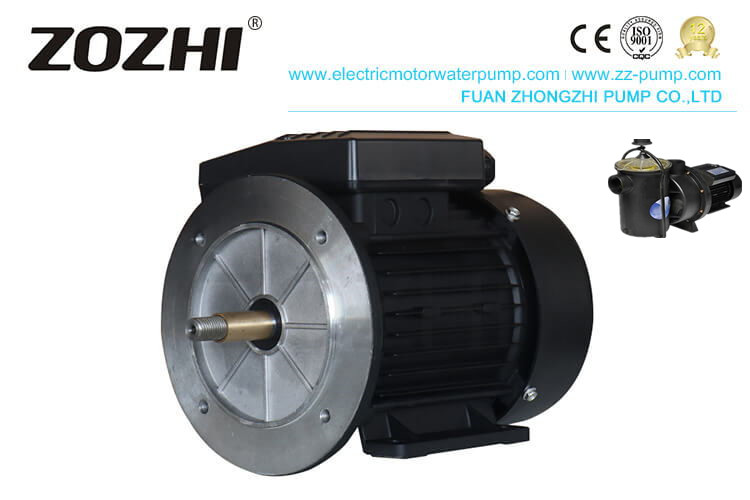

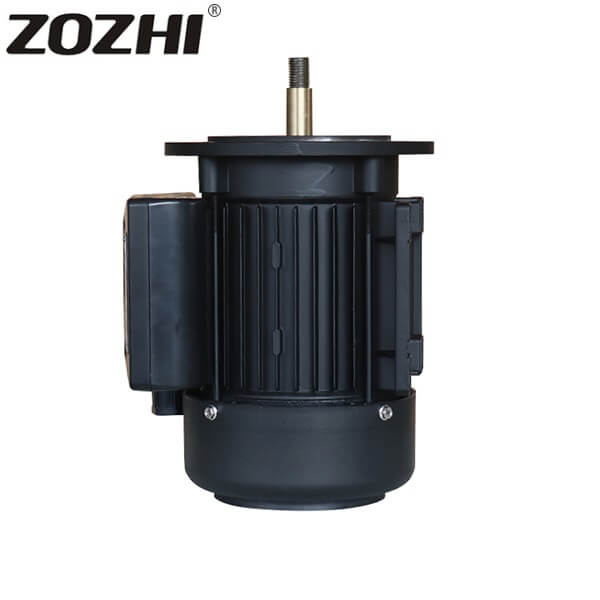

MYT802-2 2HP 2800RPM 220V 50HZ High-Quality Inground Pool Fan Cooling Asynchronous Aluminium Motor For Swimming Pool


Pool Pump Motor Description

MYT series high-efficiency single-phase capacitor running asynchronous aluminum motor is a one-way motor for the water pump. It consists of a base equipped with a stator. The base is fitted with a rotor. Both ends of the floor are equipped with end caps and motors. The outer casing is all die-cast aluminum alloy. High efficiency, good performance, long service life, energy-saving, ample starting torque, low noise, low vibration, large starting torque, high reliability, compact structure, and easy operation.



  • Motor model: MYT802-2
  • Power: 2HP/1.5KW
  • Voltage(V) : 220V /50HZ
  • Protection: IP54
  • Insulation Class: B
  • Ambient temperature: -15℃≦0≦40℃



Pool Pump Motor Production data



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) T start/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7










Pool Pump Motor Application

Single-phase electric water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and increased insulation grade. It is the best choice for swimming pool pumps.

Fan Cooling MYT802-2 2HP 2800RPM Pool Pump Motor 1.5KW 0



Production line

three phase electric motor

swimming pool pump motor

General data

Frame size 71
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 5.2 kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level


swimming pool pump

Fan Cooling MYT802-2 2HP 2800RPM Pool Pump Motor 1.5KW 4

Pool Pump Motor Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.





INFORMATION



Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
