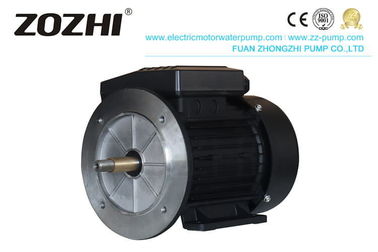

1.5Hp Single Phase Electric Motor , 220V Speed 2800 Swimming Pool Pump Motor MYT801-2

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT801-2
Minimum Order Quantity 1CBM
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pool Pump Motor Application Swimming Pool Pump
Output 1.5HP/1.1KW Pole 2
Efficiency IE1,IE2 Performance High Reliability
Capacitor Type Capacitor Running Phase Single Phase
High Light

single phase capacitor start motor

,

single phase asynchronous motor

Leave a Message
Product Description

MYT series MYT801-2 1.5Hp Induction Motor 220V Speed2800 One Phase Swimming Pool Pump Motor


Pool Pump Motor Description

MYT series High-efficiency motor design of aluminum alloy shell has the characteristics of high efficiency, energy-saving, high quality, low vibration, low noise, long service life, high reliability, convenient maintenance, and large starting torque. Installation size and power are identical. Compliance with IEC standards



  • Motor model: MYT801-2
  • Power: 1.5HP/1.1KW
  • Voltage(V) : 220V /50HZ
  • Protection: IP54
  • Insulation Class: B
  • Ambient temperature: -15℃≦0≦40℃



Pool Pump Motor Production data



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7






Application

Single-phase electric water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and high insulation grade. It is the best choice for swimming pool pumps.

1.5Hp Single Phase Electric Motor , 220V Speed 2800 Swimming Pool Pump Motor MYT801-2 0



Production line

swimming pool pump motor

General data

Frame size 80
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight  8.7kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level

1.5Hp Single Phase Electric Motor , 220V Speed 2800 Swimming Pool Pump Motor MYT801-2 2

HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH PRESSURE SWITCH
water pump water pump mechnical seal

Pool Pump Motor Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



INFORMATION



Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system in a short time.

(2) currently causes ablation of bearing system components, and heating of bearing components, resulting in a serious failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
