|Item Name:||Centrifugal Water Pump||Power:||2.0 / 1.5|
|Flow Max:||51000||Head Max:||15|
|Pipe Size:||2"x2"||Feature:||Gardening Irrigation|

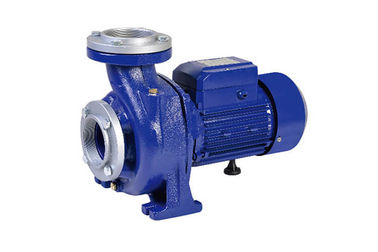

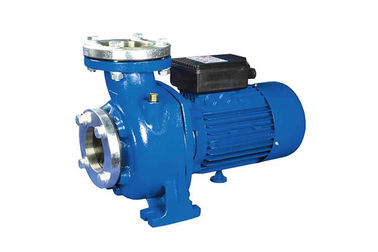

Centrifugalwater pump 2 HP 1.5KW for drainage and gardening irrigation
NFM-129A Centrifugal pumps with single impeller are able to offer high flow rates,provide smooth,nonpulsating delivery,and regulate the flow rate over a wide range without damaging the pump.
For the correct functioning of the pump,use clean water,or non-aggressive liquids charged with small solid impurities.
To be used in flow irrigation system in gardening,agriculture and industrial fittings.
1. 100% copper wire, brass impeller and automatic wiring
2. Cold-rolled silicon steel sheet, with high-speed punching, improving the efficiency and precision
3. Demagnetization of stainless steel nuts
4. Anti-rust treatment castings and electrophoresis
5. New testing equipment
6. Certificate: ISO9001, CE, SONCAP, SASO, VOC, EMC,etc
Pump Body: Cast Iron/Stainless Steel/Brass
Front Cover: Cast Iron/Cast Iron with brass insert / Aluminum
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
With thermal overload protector in single phase motor
the normal power standard is 220V 50Hz single phase.
there phase 220V/380V/50Hz,220V/440V/60Hz,
Single phase 230V,240V,127V,110V115V/60Hz model are available in request.
|HP / KW||1~220V||(L/Hour)||(m)||(M)||(mm)||(Kg)|
|NFM-129A||2.0 / 1.5||9.6||2850||51000||15||9||2"x2"||453x281x355||25|
1.centrifugal pumps are able to offer high flow rates,be used in flow irrigation system in gardening,agriculture fittings.
With single phase, it is able to offer high flow rates,provide smooth,regulate the flow rate over a wide range without damaging the pump.
2.Using clean water, non-aggressive liquids charged with small and solid impurities.
3. To be used in flow irrigation system in gardening,agriculture and industrial fittings.
4. NFM-129A centrifugal water pumps, are single stage, high efficient electric pumps, consisted of a miniature motor and a single impeller centrifugal pump. They have big capacity.
5.They are widely used in well pumping, water supplying, decanting, mixing and irrigating for civil, industry and agriculture,etc.
1. High Lift, Low Noise, Low Vibration
2. 100% copper wire
3. A Brass plate embedded to avoid impeller jam
4. Suitable for conveying the temperature does not exceed 40C° water
5. S/S screw
6. Patent design
7. 1-year warranty
1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
