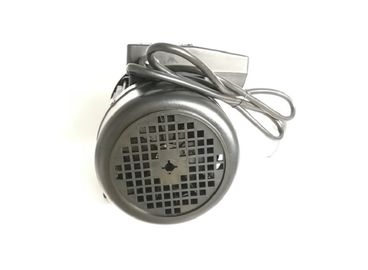

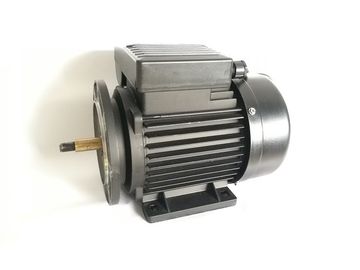

0.75HP Capacitor-run Single Phase Induction Motors For Swimming Pool Pump

  • 0.75HP Capacitor-run Single Phase Induction Motors For Swimming Pool Pump
  • 0.75HP Capacitor-run Single Phase Induction Motors For Swimming Pool Pump
  • 0.75HP Capacitor-run Single Phase Induction Motors For Swimming Pool Pump
Place of Origin Fuan China
Brand Name ZOZHI
Certification ISO/CE/CCC
Model Number MYT711-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Standard Packed in cartons.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pool Pump Motor Output 0.75HP
Efficiency 70% Type Swimming Pool Electric Motor
Insulation Class F Standard IEC 2
Degree Of Protection IP55 Rotation¹ Both (CW And CCW)
Noise Level 65.0 DB(A) Bearing NSK
Highlight

single phase electric motor

,

single phase asynchronous motor
Leave a Message
Product Description

0.75HP Capacitor-run Single Phase Induction Motor For Swimming Pool Pump





Pool Pump Motor Description:



MYT711-2 single-phase induction motor is suitable for the occasion where their requirements for starting torque is low and long-term continuous working, such as swimming pool pump and bath pump, etc. Swimming pool or bath pump.



Pool Pump Motor Technical Data:



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) T start/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7





APPLICATIONS:



MYT series high efficiency single-phase capacitor-run asynchronous aluminum housing motor, Designed for swimming pool pump, with the latest design in entirety are made of selected quality materials and conform to the IEC standard.



0.75HP Capacitor-run Single Phase Induction Motors For Swimming Pool Pump 0

OPERATING LIMITS:



Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level





General Data:



Frame size 71
Housing Material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 6.95 kg
Insulation class F
Protection degree IP 55
Thermal protection With
Rotation Direction Clockwise
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M18 × 1.5
Cooling IC 411
Regulations IEC / DIN / ISO / VDE / EN





Pool Pump Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
     A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
     A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.



INFORMATION



Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.



0.75HP Capacitor-run Single Phase Induction Motors For Swimming Pool Pump 1

0.75HP Capacitor-run Single Phase Induction Motors For Swimming Pool Pump 2

0.75HP Capacitor-run Single Phase Induction Motors For Swimming Pool Pump 3
