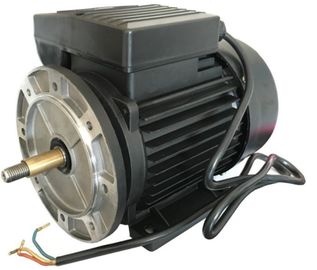

Quite Runing AC Electric Motor Water Pump for Swimming Pool 50HZ / 60HZ

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT802-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month
Product Details
Product Name Pool Pump Motor Application General Driving
Output 2HP Pole 2
Efficiency IE1,IE2 Type Swimming Pool Electric Motor
Insulation Class B/F/H
High Light

single phase capacitor start motor

,

single phase asynchronous motor

Leave a Message
Product Description

Electric Motor Of Swimming Pool Water Pump Quite Running AC Motor Plastic Pump Body



Application:



MYT series high efficiency single-phase capacitor-run asynchronous aluminum housing motor, Designed for swimming pool pump, with the latest design in entirety are made of selected quality materials and conform to the IEC standard.



MYT motors have high efficiency, good performance, safety and reliable operation, nice appearance and can be maintained very conveniently with low noises, slight vibration, lightweight, and simple construction.



Pool Pump Motor Technical Data:



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) T start/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7





Features:

  • Electric pump over-current components using high-strength engineering plastic, with high quality wear-resistant mechanical seal.
  • silent operation
  • The motor is with high-temperature bearings, long operating life, with reliability and durability.
  • Heighten pump base to keep water pump off the moist working environment
  • Thermal protector
  • Complete separation of water and the axis, safe and reliable
  • Optional pneumatic switch to ensure ease of use, security
  • Insulation class F, protection IPX5
  • The pump obtained the certification of CE, TUV







Pool Pump Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Pool Product Motor Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.





INFORMATION



Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
