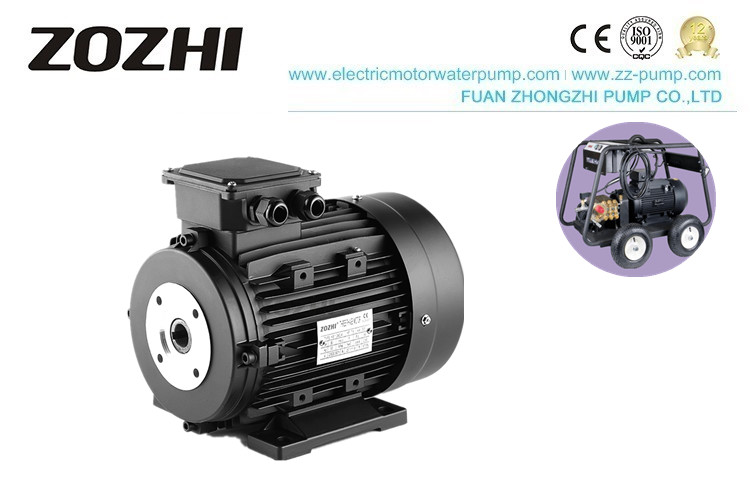

Speed Control Hollow Shaft 7.5hp AC Electric Motor

Speed Control Hollow Shaft 7.5hp AC Electric Motor
Speed Control Hollow Shaft 7.5hp AC Electric Motor
video play

Large Image :  Speed Control Hollow Shaft 7.5hp AC Electric Motor

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: 160M1-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Hollow Shaft Motor Voltage: 230/400V
Phase: Three Phase Output: 5.5kw/7.5hp
Speed: 1400rpm Shaft: 24mm
Frame: 160 Material: Die Cast Aluminum
Pole: 4 Insulation: Class F
Protection: IP55 Installation: B3
IEC Standard: IE1 Application: Cleaning Machine / Pressure Washer Machine
High Light:

1400rpm hollow shaft electric motor

,

24mm shafe 3 phase induction motor

Speed Control Hollow Shaft AC Electric Motor With Gearbox 3hp 4hp 5.5hp 7.5hp



Hollow Shaft Electric Motor 24MM

1.Rated voltage: 220V/380V as requested

2.Output:50HZ/60HZ

3.Insulation class: F

4.Protection class: IP54/IP55

5.Altitude: less than 1000m

6.Work temperature: -15°C ~40°C

7.Cooling method: IC0041

8.Work way: S

9.Relative humidity: Less than 85%



50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

Speed Control Hollow Shaft 7.5hp AC Electric Motor 0



FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 XM - RK - RG
90 61/90mm 90L XM - RK - RG   Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M XW - XWL - SWL - SHP
