QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump

QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump

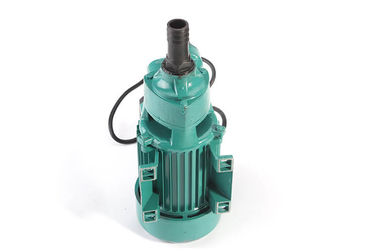

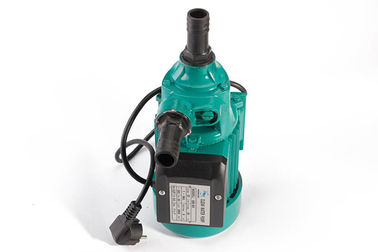

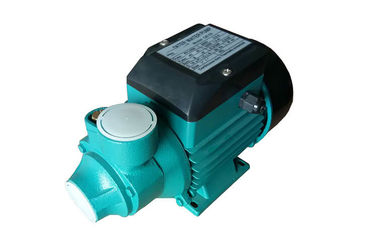

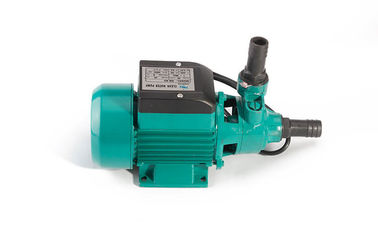

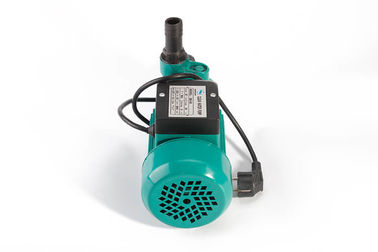

QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump

Large Image :  QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: QB Series
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:295x165x175mm/pc, N.W.: 5.5kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Detailed Product Description
Item: Clean Water Pump Usage: Household Use
Power Range: 0.5HP--1.5HP Flow Max Range: 35-90 L/Min
Head Max Range: 35-60 M Impeller: Brass Impeller
Feature: High Pressure Frequency: 50 HZ / 60 HZ
Product Name: Peripheral Water Pump
High Light:

peripheral impeller pump

,

domestic water pump

QB Series 0.5-1.5HP Peripheral Water Pump, High-Pressure Electric Water Pump



Peripheral Water Pump DESCRIPTION:



1. Inlet and Outlet pipe size 1-1/2"



2. Motor: 2 Pole induction motor, 50/60 Hz, 220-240V, Single Phase



3. Structure: Cast iron pump body with brass plate embedded, Stainless steel mechanical seal, Brass



4. Impeller w/ radial peripheral blades, #45 Steel Iron Shaft



5. A reliable, clean water pump is designed to pump clear water from tanks, pools, rain barrels, etc.





CONTRAST ADVANTAGE:

A) Strong support horsepower,



B) Streamlined design


C) Efficient heat dissipation


D) 100% output power and 100% good quality copper wire



APPLICATIONS:



Ideal for ponds, pools, and flow irrigation systems in a household, gardening, and agriculture settings










DATA:



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass/Noryl PPO
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC





Peripheral Water Pump TECHNICAL DATA:



QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump 0



QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump 1QB Series 0.5-1.5HP Peripheral Water Pump , High Pressure Electric Water Pump 2



Peripheral Water Pump WARRANTY:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except for the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Peripheral Water Pump SERVICE

1. Directly factory sale
2. Quick response TO 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

Peripheral Water Pump Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




FAQ:


1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
