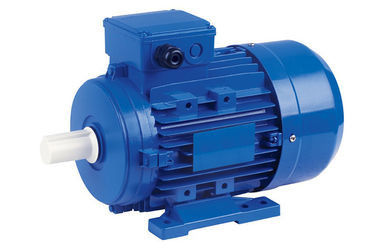

Multifunctional Magnet Brushless Ac Motor , Three Phase Synchronous Motor

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS3-132S1-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name IE2 Motor Output 5.5KW/7.5HP
Frequency 50Hz/60Hz Winding Copper Wire
Standard IEC 3 Housing Aluminum
Pole 2 Frame 132
High Light

high efficiency ac motor

,

three phase induction motor

Leave a Message
Product Description

Multifunctional Magnet Brushless Motor For Wholesales With Aluminium Housing



Motor Features Customer Benefits
.Aluminium frame, end shields, and base
.High strength cable gland
.Shaft key and protector supplied
.Superior paint finish
.Motors made to heavy-duty service factors
.Can be made with stainless steel shaft
.Others insulation on request
.High performance and efficiency
.Water dust and vermin resistant
.Quiet operation
.Electricity saving
.Easy installation (bolt-on feet or brackets as required)
.Corrosion resistant
.Dependable
.Superior life
.Reliable in country, city, or factory environments



Electric Aluminium Housing AC Motor:



Series Name: MS3
Certificate: CE, ISO9001
Main Market: Western Europen
Standard: IE1 / IE2 / IE3
Housing: Cast Iron / Aluminium
Bearing: C&U,NSK,SKF
Lamination: Cold Rolled Steel(DW 800)
Wire: 100% copper
Power: 0.06kW-900kW
Frame Size: 56-450(mm)
Poles: 2,4,6,8,10
Duty: S1,S2,S3
Insulation Class: F
IP: 55
IM: Horizontal / Vertical
Delivery Time: 40 Days
Package ply-wooden box/pallets





OPERATING CONDITIONS:



Ambient temperature -15°c ‹ Θ ‹ 40°c
Altitude Not exceeding 1000meters
Rated voltage 220V
Rated frequency 50Hz,60Hz
Duty/Rating Continuous(S1)
Protection class IP44, IP54
Insulation class Class B, F
Cooling method IC411



IE2 Motor PERFORMANCE CHART:



Multifunctional Magnet Brushless Ac Motor , Three Phase Synchronous Motor 0



IE2 Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



IE2 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
