0.5 HP Micro Clean Water Pump , Peripheral Vortex Impeller Submersible Pumps Single Stage

Good quality Peripheral Water Pump for sales
Good quality Peripheral Water Pump for sales
Zhongzhi does really good on the design and manufacturing of the products. Experienced engineers service us very nice.

—— Vadim Zabiiaka

Good quality, great manufacturers, we are happy with your products.

—— Mr.Reuben kimwolo

Have been working together for more than 3 years very professional. all products work fine in our types of equipment. Thank you.

—— Mr.Yılmaz Türkoğlu

Thank you so much for Zhongzhi company to make our project run smoothly.

—— Mehmet Sefa KEÇİK

Technical issues resolved, reputation is very good.

—— Mr.ANTONIS GKANIS

I'm Online Chat Now

0.5 HP Micro Clean Water Pump , Peripheral Vortex Impeller Submersible Pumps Single Stage

China 0.5 HP Micro Clean Water Pump , Peripheral Vortex Impeller Submersible Pumps Single Stage supplier

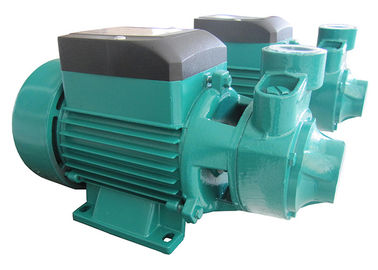

Large Image :  0.5 HP Micro Clean Water Pump , Peripheral Vortex Impeller Submersible Pumps Single Stage

Product Details:

Place of Origin: Fujian China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: QB-60

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:280x145x180mm/pc, N.W.: 5.3kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Theory: Vortex Water Pump Structure: Single Stage Pump
Power: 0.5HP / 0.37KW Flow Max: 35 L/Min
Head Max: 35M Suction Max: 9M
Impeller: Brass Speed: 2850RPM



0.5 HP Qb Micro Vortex Water Pump , Peripheral Single Stage Vortex Impeller Submersible Pumps

Features of Domestic Pump

Top quality QB60 pump
1) Copper wire, Brass impeller;50mm rotor
2) With heavy pump case, a pump body
3) For the good quality markets


QB VORTEX PUMP
Model QB-60
Power 0.37KW / 0.5HP
Max flow 40 L/MIN
Max head 33 M
Outlet 25MM
Gross.weight 5.5 KGS
Rotor length 50 MM
Packing size 28.5*13.0*16.5 CM
20FT 4200 PCS
Warranty One year
MATERIALS
Pump body Cast Iron
Motor body Aluminum
Shaft # 45 Steel
Impeller Brass
mechanical seal

mechanical seal






0.5 HP Micro Clean Water Pump , Peripheral Vortex Impeller Submersible Pumps Single Stage

Zhongzhi Peripheral pumps with peripheral impeller are able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. and suitable for handing clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.
They are extremely reliable, light, economic, and simple to use, finding many uses in domestic applications, in particular, the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.




TECHNICAL DATA

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
QB60 0.5 / 0.37 1.6 2850 35 35 9 1"x1" 280x145x180 5.3
QB70 0.75 / 0.55 3.6 2850 45 50 9 1"x1" 330x180x220 9.5
QB80 1 / 0.75 4.8 2850 50 55 9 1½ "x1½" 330x180x220 10
QB90 1.5 / 1.1 6.2 2850 90 60 9 1½ "x1½" 425x200x220 22

Other voltages and frequencies available on request


0.5 HP Micro Clean Water Pump , Peripheral Vortex Impeller Submersible Pumps Single Stage



STRUCTURAL CHARACTERISTICS


Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass
Motor housing Aluminum
Stator&Rotor 1.Cold -rolled silicon steel sheet by high speed punching machine. 2. 100% high quality copper wire
Front cover Cast Iron Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK,SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC





GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



OUR SERVICE

1. Directly factory sale
2. Quick response TO 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
