Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator

China Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator supplier
Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator supplier Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator supplier

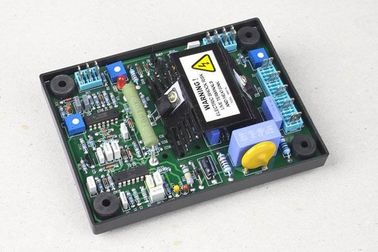

Large Image :  Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator

Product Details:

Place of Origin: Fujian ,China
Brand Name: ZOZHI
Certification: CCC
Model Number: SX460

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: cartons
Supply Ability: 5000pcs
Contact Now
Detailed Product Description
Product Name: AVR Voltage: Max 90V Dc At 207V Ac Input
Frequency: 50-60 Hz Nominal AVR Response: 20ms
Guarantee: One Year Phase: 1 Phase



Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator



Description:





SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator(AVR)



and forms part of the excitation system for a brushless alternator, such as Stamford or



Stamford technical alternator.





Technical Specification:



Input Voltage jumper selectable 95-132V ac or 190-264V ac



Frequency 50~60Hz



OutputVoltage Max 90VDC at 207VAC input



Current Continuous 4ADC



Intermittent 6A for 10 secs



Resistance 15 ohms minimum



Regulation +/- 1.0%



Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator





Input Voltage Jumper selectable 95-132V ac or 190-264V ac
Frequency 50-60 Hz nominal
Phase 1
Output Voltage Max 90V dc at 207V ac input
Current Continuous 4A dc, intermittent 6A for 10 secs
Resistance 15 ohms minimum
Regulation +/- 1.0%
Thermal Drift 0.05% per deg. C change in AVR ambient
Typical system response AVR response 20ms
Filed current to 90% 80 ms
Machine Volts to 97% 300ms
External voltage adjustment +/-10% with 1 k ohm 1-watt trimmer
Under frequency protection Setpoint 95% Hz
Slope 170% down to 30 Hz
Unit power dissipation 12 watts maximum 10 watts maximum
Build-up voltage  4 Volts @ AVR terminals
Environmental Vibration 20-100 Hz
100Hz – 2kHz, 3.3g
Operating temperature -40 to +70 Deg. C
Relative Humidity 0-70 Deg.
C
95%
Storage temperature -55 to +80 Deg. C



More Products



AVR R448 AVR AS440 MX321 MX341
AS440 AS480 GAVR12  GAVR 12 EA05A
R449 R220 R438 R450



Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator

Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our service:



1. Directly factory sale

2.Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.





FAQ


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
