ML Electric 0.37Kw Single Phase Induction Motor Capacitor Start Motor

  • ML Electric 0.37Kw Single Phase Induction Motor Capacitor Start Motor
  • ML Electric 0.37Kw Single Phase Induction Motor Capacitor Start Motor
  • ML Electric 0.37Kw Single Phase Induction Motor Capacitor Start Motor
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number ML711-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 0.5HP / 0.37KW Pole 2
Protection Class IP54 Frequency 50Hz
Insulation Class B Type Asynchronous Motor
Highlight

ML Electric Single Phase Induction Motor

,

0.37Kw Single Phase Induction Motor

,

General Driving AC Asynchronous Motor
Leave a Message
Product Description


ML Electric Motor 0.37 KW Single Phase Induction Motor Capacitor Start Motor

Single Phase Induction Motor Description:

ML series is a single-phase dual-capacitor(capacitor-start-run) ac asynchronous aluminum housing motor, with the latest design in its entirety. These series are made of selected quality materials. It is an enclosed fan cooling type. The induction motors are produced according to IEC standards.

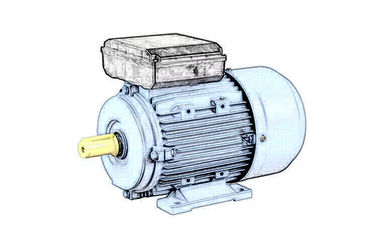

 ML Electric 0.37Kw Single Phase Induction Motor Capacitor Start Motor 0
Single Phase Induction Motor Application:
This series motor is not a final one. It can be attached to other machines to provide power. You can use it on fans, pumps, refrigerators, and small size machines.
Technical Data:

Model Power   Voltage(V) Frequency (Hz) Current (A) Power Factor Eff(%) Speed (r/min) T start/Tn Tmax/Tn Ist/In
H.P. KW
ML711-2 0.5 0.37 220 50 2.73 0.92 67 2800 2.3 1.8 16






MODEL LIST:



Model Power
(K.W.)
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110

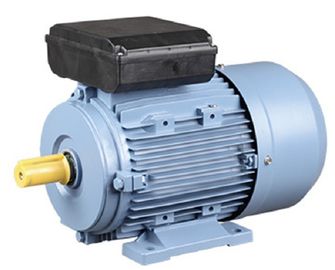

ML Electric 0.37Kw Single Phase Induction Motor Capacitor Start Motor 1

Installation size and overall dimension:

Frame No. Installation size Overall size(mm)
  IMB14 IMB5
A B C D E F G H K M N P R S T M N P R S T AB AC AD HD L
71 112 90 45 14 30 5 11 71 7 85 70 105 0 M6 2.5 130 110 160 0 10 3.5 145 145 125 205 255
80 125 100 50 19 40 6 15.5 80 10 100 80 120 0 M6 3.0 165 130 200 0 12 3.5 160 160 135 235 295
90S 140 100 56 24 50 8 20 90 10 115 95 140 0 M8 3.0 165 130 200 0 12 3.5 180 180 145 265 335
90L 140 125 56 24 50 8 20 90 10 115 95 140 0 M8 3.0 165 130 200 0 12 3.5 180 180 145 265 360
100L 16 140 63 28 60 8 24 100 12 - - - - - - 215 180 250 0 15 4.0 205 205 170 280

380



 ML Electric 0.37Kw Single Phase Induction Motor Capacitor Start Motor 2


 Operating Conditions:

Ambient temperature -15°c to 40 °c
Altitude ≤1000m
Rated voltage 220V, 230V, 240V, 110V, 115V, 120V, etc
Rated frequency 50HZ, 60HZ, 50HZ/60HZ
Duty Continuous(S1)
Insulation class Class B, Class F
Protection class IP44, IP54, IP55
Cooling method IC0141


Single Phase Induction Motor  Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Directly factory sale

2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
