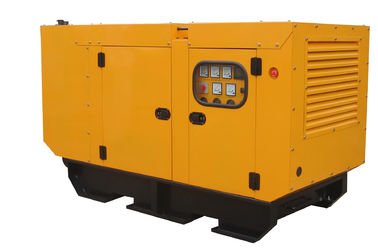

100KW Silent Diesel Generator With Ricardo Engine R6105IZLD

Place of Origin Fujian,China
Brand Name ZOZHI
Certification ISO
Model Number GFS-W138
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Plastic Foam Packing,veneer case or wooden case
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 800pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Open Diesel Generator Standby Power 138kva /110kw
Engine Recardo R6105IZLD Alternator ZHONGZHI ZZG274E
Controller Model Smartgen HGM1780 Rate Voltage 400V
Frequecy 50HZ
High Light

diesel generating set


silent dg set

Leave a Message
Product Description

Open Diesel Generator 100KW Silent Diesel Generator With Ricardo Engine R6105IZLD



Open Diesel Generator Recardo Diesel genset base data:

  • Diesel genset model: GFS-W138
  • Genset type: Soundproof
  • Engine brand : Recardo
  • Engine model: R6105IZLD
  • Alternator brand: ZHONGZHI
  • Alternator model: ZZG274E
  • Prime output : 100kw/125kva
  • Controller brand: Smartgen
  • Controller model: HGM1780


Main specifications of generating set:


Genset Open type model GF-W138
Soundproof model GFS-W138
Standby power(KVA / KW) 138/110
Continuous power(KVA / KW) 125/100
Rate Voltage 400v
Rate Frequency 50Hz
Controller Model HGM1780
Open Dimension
Open Weight
Silent Dimension (MM) 2800*1060*1440
Silent Weight (KGS) 1640
Engine Engine Brand RECARDO
Engine Model R6105IZLD
Rated power(KVA/KW) 165/132
Standby power(KVA/KW) 181.5/145.2
Number of cylinders 6
Cylinder bore(mm) X Piston stroke(mm) 105X135
Displacement(Liters) 7.01
Compression 16:01
Speed rated(r/min) 1500
Steady governing ≤5%(MECHANICAL);≤1%(ELECTRONIC)
Speed regulation ≤0.5%(MECHANICAL)≤0.25%(ELECTRONIC)
Fuel consumption(g/kw.h) 225
Oil consumption(g/kw.h) ≤1.63
Oil sump(L) 16
Mean effective(kpa) 1426
Exhaust gas temperature (℃) ≤600
Exhaust gas(m3/h) 1524
Exhaust gas backpressure max permissible (kpa) 6.5
Cooling air requirements for the fan-cooled radiator(m3/h) 12960
Air for combustion(m3/h) 528
Cooling water(L) 25
Power input for the fan(kw) 4.5
Starter motor 24V5.2KW
Charging alternator 28V12.5A
Flywheel # SAE3#
Flywheel measurement SAE3#---11.5
Firing order 1-5-3-6-2-4
Net weight(kg) 620
Dimension(mm) without radiator (L) 1287
(W) 819
(H) 1274
Alternator Alternator Brand ZHONGZHI
Model ZZG274E
Continuous power(KW/KVA) 112/140
Type 4 Pole, Rotating Field
Exciter type Brushless, Self-excited
Voltage regulator AVR.440
Voltage regulation ±1.0% with 4%engine governing
Insulation Class H
Protection IP23
Rated Power factor 0.8
Winding leads 12
Waveform distortion No-load < 1.5%
Altitude ≤1000m


Open Diesel Generator Feature:


1) Brand-new engine, starter motor.

2) Brushless alternator, single bearing, flange connection, IP23, H class insulation, with AVR

3) Auto control panel with LCD.

4) Engine mounted battery-charging alternator, Genset with battery charger of main supply.

5) Circuit Breaker, Exhaust Silencer

6) Copper Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard

7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the complete generator running stable

8) Skid-mounted bottom 8 hours fuel tank(without bottom fuel tank above 500kw).

9) External recessed emergency stop button for extra safety

10) Optional: ATS (automatic transfer switch), AMF panel, Trailer, container canopy, Parallel system





ZHONGZHI produces diesel generator sets and low-voltage switchgear assemblies and a full range of services including unit instillation, full-automatic distribution, generator room environmental engineering, unit maintenance, spare parts supply, etc. The units produced by ZHONGZHI all use international brand engines and generators with excellent quality. Through ten years of product development and technology accumulation, ZHONGZHI'S products gradually become more mature. To meet the different needs of customers worldwide, we will renovate continuously technologies and improve products.


Open Diesel Generator Relative products:

Open or Silent diesel generator set power by Cummins, Perkins, Deutz and Chinese power brand, power range from 8KVA to 2000KVA.


1) Each generator shall be tested at the manufacturer’s workshop before shipment.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the customer in advance of the test date notification.
3) All accompanying documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters, and the Performance Index.
Open Diesel Generator Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
