Synchronous AC Electric Generators / Single Phase Brushless Generator

China Synchronous AC Electric Generators / Single Phase Brushless Generator supplier

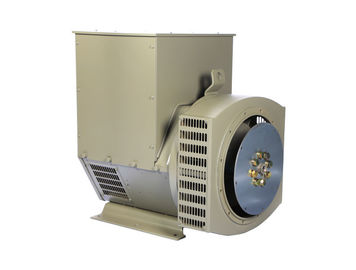

Large Image :  Synchronous AC Electric Generators / Single Phase Brushless Generator

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: ZZG274C

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in veneer case or wooden case
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 5000SETS/MONTH
Contact Now
Detailed Product Description
Prime Power: 80KW/100KVA 50HZ) Phase: Single Phase
Voltage: 400V Frequency: 50HZ
Insulation Class: H Enclosure: IP23
Feature:: Brushless AC Alternator Rotation Speed:: 1500 / 1800 R/min
AVR: SX440 Flange: Double



Synchronous AC Electric Generators / Single Phase Brushless Generator





MAIN PERFORMANCE DATA:



1. The Standard protection for CSC series generators is IP23;

2.  A winding is insulated to class H;
3. Full-damping whole salient construction guarantees generators to be operated stably in any conditions, and enable it to run under 150% rated Speed (2250r/min) for 2 min;

4. 2/3 winding pitch, easy to operate with the other generator in parallel;

5. Adjusting the rate of stable voltage ≤ 1%, adjusting the rate of instant voltage: -15%~+20%(60%In, COSØ ≤0.4lagging), instant voltage recovery time ≤1.5S
6. Wave aberration rate of voltage THD ≤4%, telephone harmony wave factor THF≤2%, telephone effective factor of TIF≤50.





APPLICATIONS:



ZZG Series Brushless Synchronous Generator is a new generation of a generator, which is developed and designed by our company after we digested fully the advanced technology of international famous brand generator. It owns single bearing and double bearing structure can be assembled with all kinds of domestic and foreign brand engines. The base adopts steel shell structure, stator core adopts is a brushless self-excited type, it is able to control integral type overlying lamination, rotor core adopts full damping convex structure, excitation mode automatically via AVR. Our product has characteristics of compact size, light weight, elegant appearance, reliable performance, easy installation, and convenient maintenance.



ZZG274 TECHNICAL DATA SHEET

50Hz-1500PRM CLASS"H"



RATING Winding 311/0.8 Power Factor
Duty/Temp
Rise/Ambient T°
Cont./125K/40℃ Standby/150K/40℃
Phase 3 Phase 3 Phase
Voltage Y 380 400 415 440 380 400 415 440
220 230 240   220 230 240
YY       220       220
ZZG274C KVA 100 100 100 100 110 110 110 110
KW 80 80 80 80 88 88 88 88
ZZG274D KVA 125 125 125 125 137.5 137.5 137.5 137.5
KW 100 100 100 100 110 110 110 110
ZZG274E KVA 140 140 140 140 152.5 152.5 152.5 152.5
KW 112 112 112 112 122 122 122 122
ZZG274F KVA 160 160 160 160 175 175 175 175
KW 128 128 128 128 140 140 140 140
ZZG274G KVA 175 175 175 175 192.5 192.5 192.5 192.5
KW 140 140 140 140 154 154 154 154
ZZG274H KVA 200 200 200 200 220 220 220 220
KW 160 160 160 160 176 176 176 176
ZZG274J KVA 225 225 225 225 245 245 245 245
KW 180 180 180 180 196 196 196 196
ZZG274K KVA 250 250 250 250 275 275 275 275
KW 200 200 200 200 220 220 220 220



60Hz-1800PRM CLASS"H"



RATING Winding 311/0.8 Power Factor
Duty/Temp
Rise/Ambient T°
Cont./125K/40℃ Standby/150K/40℃
Phase 3 Phase 3 Phase
Voltage Y 416 440 460 480 416 440 460 480
240       240
YY 208 220 230 240 208 220 230 240
ZZG274C KVA 120 120 120 120 132 132 132 132
KW 96 96 96 96 106 106 106 106
ZZG274D KVA 150 150 150 150 165 165 165 165
KW 120 120 120 120 132 132 132 132
ZZG274E KVA 168 168 168 168 185 185 185 185
KW 134 134 134 134 147 147 147 147
ZZG274F KVA 192 192 192 192 211 211 211 211
KW 154 154 154 154 169 169 169 169
ZZG274G KVA 210 210 210 210 231 231 231 231
KW 168 168 168 168 185 185 185 185
ZZG274H KVA 240 240 240 240 264 264 264 264
KW 192 192 192 192 211 211 211 211
ZZG274J KVA 270 270 270 270 297 297 297 297
KW 216 216 216 216 238 238 238 238
ZZG274K KVA 300 300 300 300 330 330 330 330
KW 240 240 240 240 264 264 264 264

*Xg is typical data for SAE#3.





SINGLE BEARING:



Synchronous AC Electric Generators / Single Phase Brushless Generator

Frame Dimensions(mm) Mass
(kg)
Type LB *Xg
SAE1 SAE2&3
ZZG274C 750.3 736 342 385
ZZG274D 750.3 736 360 430
ZZG274E 865.3 851 367 455
ZZG274F 865.3 851 398 510
ZZG274G 865.3 851 398 535
ZZG274H 915.3 901 432 600
ZZG274J 1001.3 986 453 625
ZZG274K 1001.3 986 473 675

*Xg is typical data for SAE#3.



Flange Dimensions(mm)
S.A.E. P N M R-φS W D
#1 580 511.175 530.225 12-φ13 6 216.3 15°
#2 530 447.675 466.725 12-φ11 6 202 15°
#3 530 409.575 428.625 12-φ11 6 202 15°



Coupling
S.A.E. #10 #11.5 14
#1
#2
#3



Drive Disc Dimensions(mm)
S.A.E. BX AM AR-φAS AH
#10 314.325 295.275 8-φ11 53.8
#11.5 352.425 333.375 8-φ11 39.6
#14 466.725 438.15 8-φ14 25.4





DOUBLE BEARING:



Synchronous AC Electric Generators / Single Phase Brushless Generator

Frame Dimensions(mm) Mass
Type L LB D Xg (kg)
ZZG274C 842 690.5 319.5 294 375
ZZG274D 842 690.5 319.5 312 420
ZZG274E 957 805.5 359.5 319 445
ZZG274F 957 805.5 359.5 350 500
ZZG274G 957 805.5 359.5 359 528
ZZG274H 1007 855.5 359.5 384 590
ZZG274J 1092 940.5 370.3 405 615
ZZG274K 1092 940.5 370.3 425 665





GUARANTEE:



Guarantee for one year or 1000hours(accord to whichever reach first) from shipped on board date.



During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Quick response to 2-8hours, response rates over 92%
2. 24 hours phone call is available, feel free to contact us.
3. All goods produced by ourselves, we provide one-stop services from designing, printing to processing.
 ​4. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
