Cold - Rolled Silicon Steel Sheet Automatic Water Pump For Boosting AUTODP-550A

China Cold - Rolled Silicon Steel Sheet Automatic Water Pump For Boosting AUTODP-550A supplier

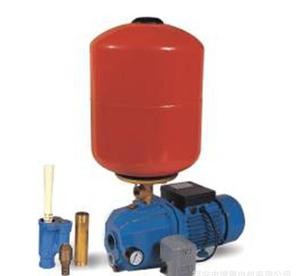

Large Image :  Cold - Rolled Silicon Steel Sheet Automatic Water Pump For Boosting AUTODP-550A

Product Details:

Place of Origin: CHINA
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: AUTODP-550A

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:490x210x230mm/pc, N.W.: 16.5kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Product Name: Automatic Water Pump Application: Well Pumping
Power: 0.75HP / 0.55KW Flow Max: 40 L/Min
Head Max: 35m Suction Max: 15m
Inlet/Outlet: 1"x1" Tank Material: Cast Iron





Cold - Rolled Silicon Steel Sheet Automatic Water Pump For Boosting AUTODP-550A





ADVANTAGE



a) The problem of start and stop frequently disappeared, protect the pump and extend life.

b) No- water protection, no burn-in, no rusty and stuck. Use safety and more assured.

c) Good quality bearing, the surface more smooth, the dimension more precise

d) Thermal protector

e) One year warranty





AUTOMATIC WATER PUMP APPLICATION



  1. Auto series of a pump is constituted with clean water pump, non-return valve, and air-water separation room, which located on the upside of the pump body.
  2. During operating, it is no need to use foot valve, the only thing that you should do is just leave some water in the pump body.
  3. After a few minutes' running, the water will be sucked out relying on the pump body itself.
  4. They are particularly suitable for domestic applications such as supplying water from well, pool etc.
  5. It is also suitable for water pressure boosting, gardening and automatic water supplying if combined with other appliances.







STRUCTURAL CHARACTERISTICS



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass
Motor housing Aluminum
Stator&Rotor 1.Cold -rolled silicon steel sheet by high speed punching machine. 2. 100% high quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK,SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC







TECHNICAL DATA



Model Output Suct.Max R.P.M. Q.Max H.Max Suct.Max. Pipe Dia LxWxH N.W.
HP / KW (m) (l/min) (m) (M) (mm) (Kg)
DP-550A 0.75 / 0.55 15 2850 40 35 15 1"x1" 490x210x230 16.5
DP-750A 1 / 0.75 20 2850 48 40 20 1"x1" 490x210x230 17
DP-505 1.5 / 1.1 25 2850 95 42 25 1"x1" 525x250x300 31

Other voltages and frequencies available on request







INSTALLATION SIZE



Cold - Rolled Silicon Steel Sheet Automatic Water Pump For Boosting AUTODP-550A







GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.







OUR SERVICE


1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator, and diesel generator since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
A: 1 year from shipped on board date.
