Electric Peripheral Vortex Water Pump 1HP For Small TCL / Steam Generator
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | CE/SGS/ISO |
Model Number | DB-750 |
Minimum Order Quantity | 1pc |
Price | negotiated |
Packaging Details | Packed in cartons , overall size:310x170x200mm/pc, N.W.: 10kgs |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 30000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xItem | Peripheral Water Pump | Usage | Clean Water |
---|---|---|---|
Power | 1HP / 0.75KW | Flow Max | 50L/Min |
Head Max | 55M | Impeller | Brass Impeller |
Feature | Long Life | Frequency | 50 HZ |
Highlight | Peripheral Vortex Water Pump,Steam Generator Vortex Water Pump,1HP Self Priming Peripheral Pump |

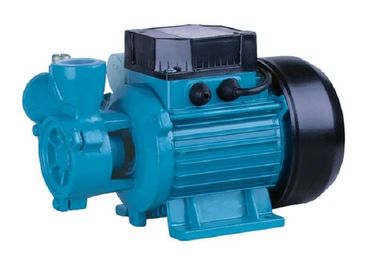

Electric Peripheral Vortex Water Pump 1 HP for Small TCL / Steam Generator
An advantage of Vortex Water Pump:
A) Beautiful appearance, humanize, handle, easy to move
B) Cold-rolled silicon steel sheet by a high-speed punching machine
C) Good quality bearing, the surface more smooth, the dimension more precise
D) Thermal protector
E) One year warranty
F) 100% output power and 100% good quality copper wire.
Applications:
These project products are widely used in small TCL, steam generators, small water supply, household, vegetable greenhouse, garden, and other areas. The pump transfer the non-flammable and explosion liquid without the particles, fiber. The living condition could be much improved.
Peripheral Water Pump Technical Data:
Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
DB-125 | 0.3 / 0.25 | 1.4 | 2850 | 32 | 32 | 9 | 1"x1" | 280x160x180 | 4.8 |
DB-370 | 0.5 / 0.37 | 1.8 | 2850 | 35 | 35 | 9 | 1"x1" | 280x160x180 | 5.2 |
DB-550 | 0.75 / 0.55 | 3.6 | 2850 | 45 | 50 | 9 | 1"x1" | 310x170x200 | 9 |
DB-750 | 1 / 0.75 | 4.8 | 2850 | 50 | 55 | 9 | 1"x1" | 310x170x200 | 10 |
Other voltages and frequencies available on request
Structural Characteristics:
Main Specification | Standard | Optional |
Transmission medium | Clean Water | |
Pump body | Cast Iron | |
Impeller | Brass/Noryl PPO | |
Motor housing | Aluminum | |
Stator&Rotor | 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
Peripheral Water Pump Warranty:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except for the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our Service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
Peripheral Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ:
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
